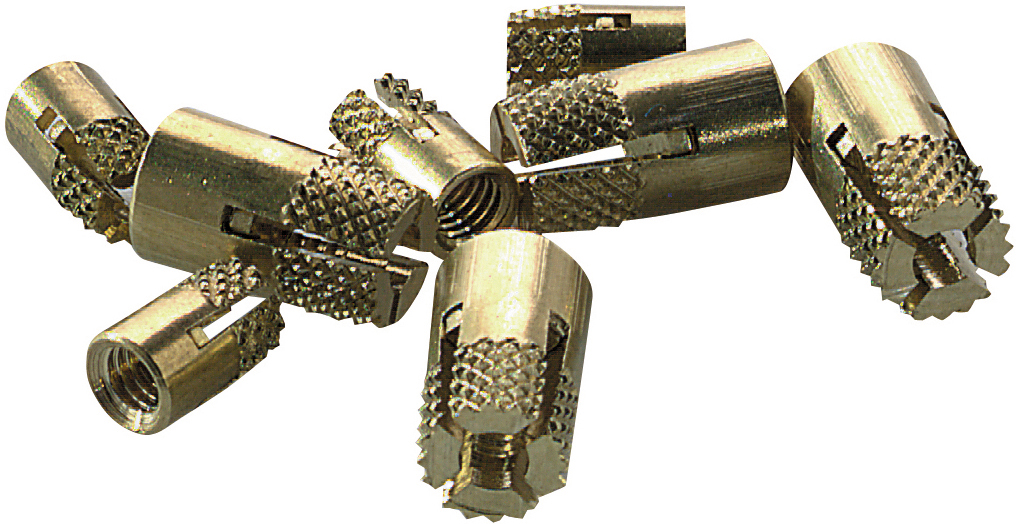

Euromas ABS / PC / F05 | Threaded inserts for mounting bosses
DODGE M4x9,5
Order no.: 59002820
ND = 5.4 x 9.5
DODGE M4x9,5
Order no.: 59002820
ND = 5.4 x 9.5
Add to the shopping basket
Show the shopping basketDownload print view
* = Available on request.
Product drawing
Enclosure concept
Characteristics
Colour of enclosure group
--
Enclosure Material
ABS, PC (UV stabilised) and selected sizes in PC UL 94 V0 (additional UL 94 V0 versions on request)
The highest flammability rating of UL 94 5V is achieved even with slightly reduced outdoor suitability (f2 listing acc. to UL 746).
Seal: CR
V215: Vestamid, CR seal
For details see Technical Information
Scope of delivery
1 piece
Note
Put the threaded insert into the boss until it touches the base. Then hammer down the stretcher plate using a pin.
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a
pressure compensation
element.
In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
Technical documentation / Downloads
3D product data in STEP format:
Login to download
3D product data in STEP format:
Login to download
- 508 WPZ-Original DE.pdf(204.9 KB)
- 508 WPZ-Original EN.pdf(140.6 KB)
- 670 WPZ-Euromas-PC DE.pdf(197.3 KB)
- 670 WPZ-Euromas-PC EN.pdf(191.1 KB)
- euromas-abs-pc-f05 en.pdf(1.1 MB)
