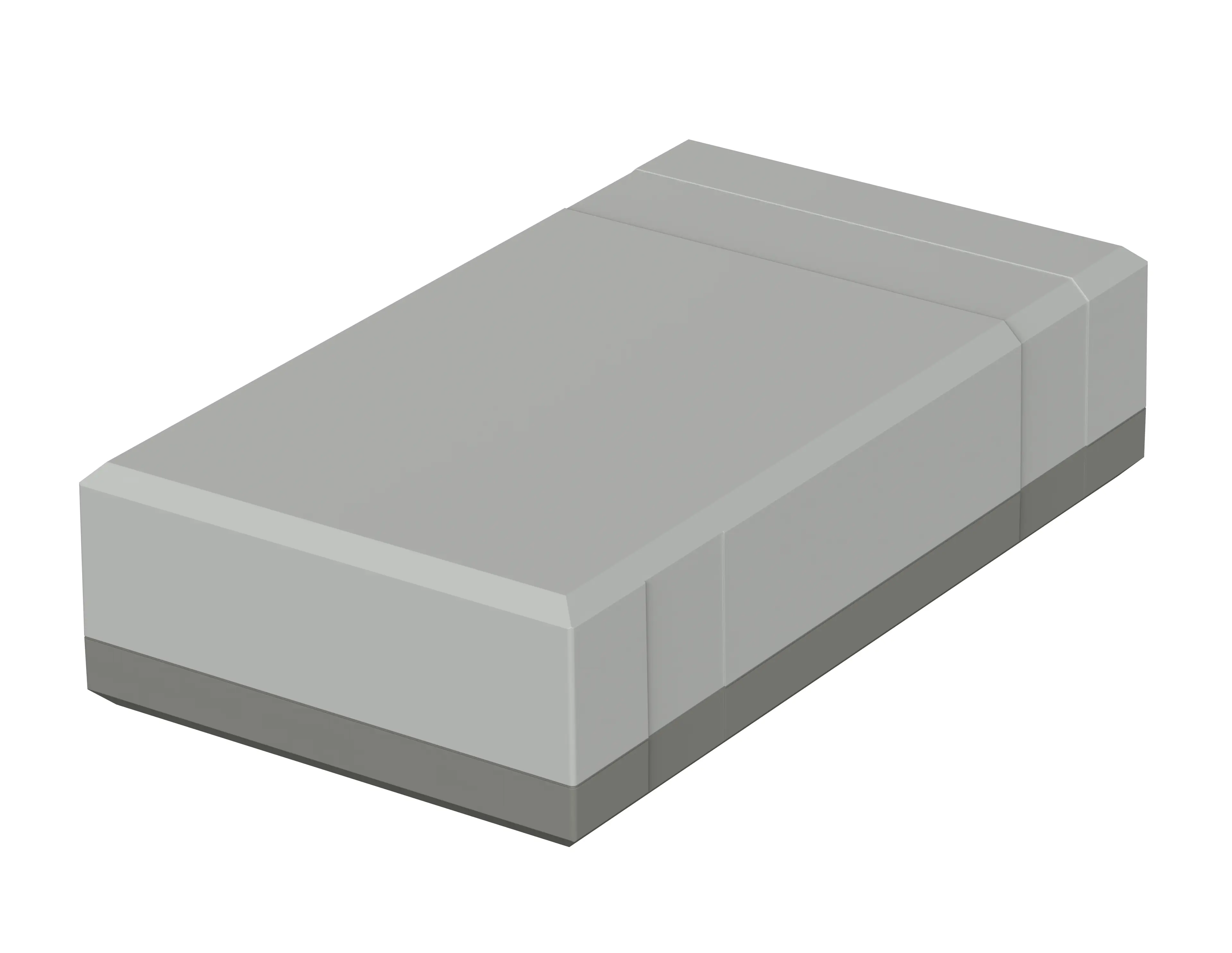

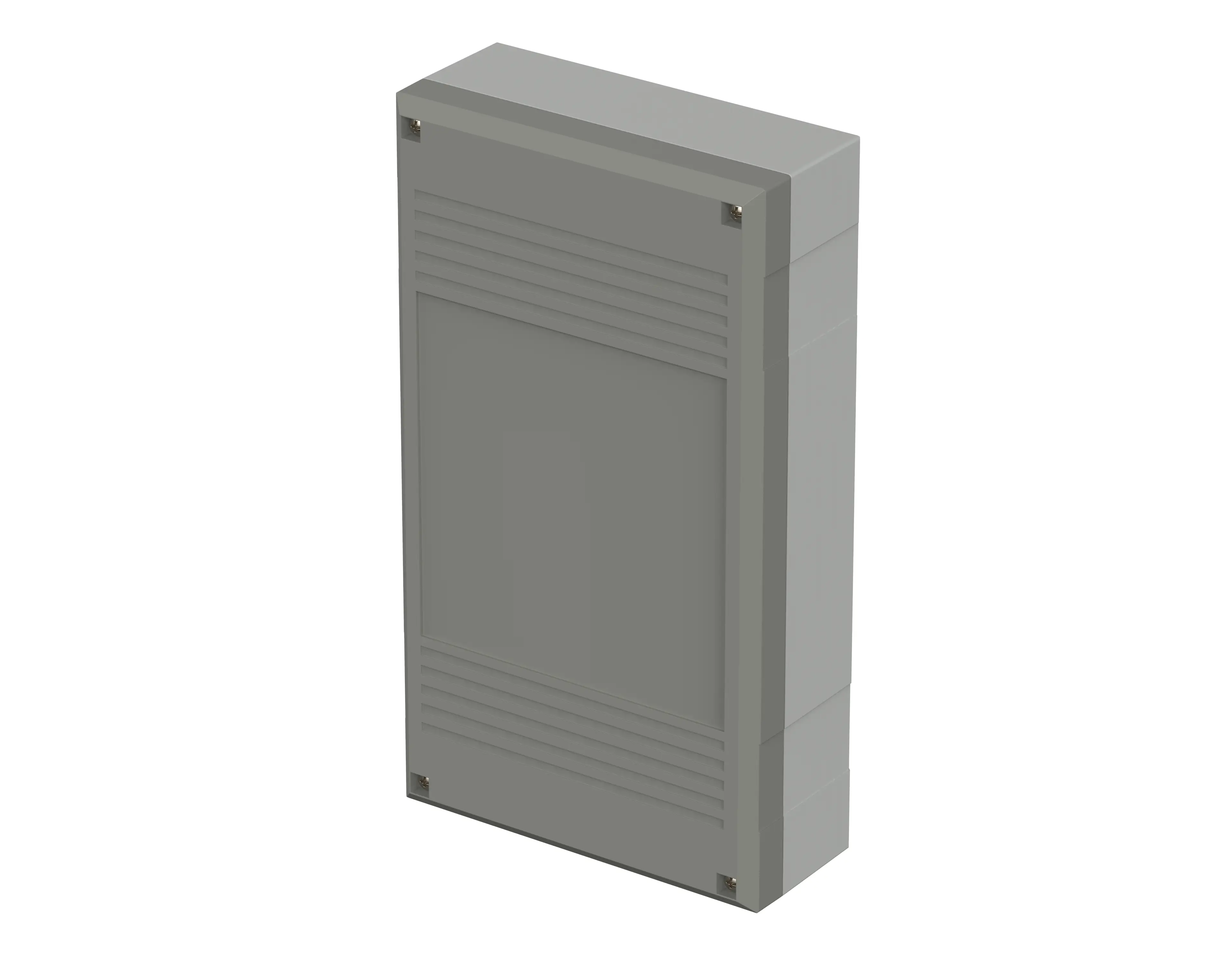

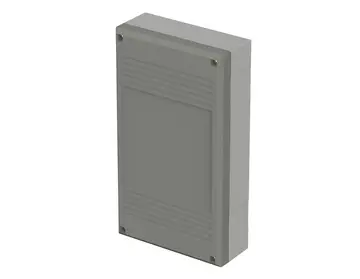

Elegant | Enclosure
EG 2050
Order no.: 32205002
EG 2050
Order no.: 32205002
Add to the shopping basket
Show the shopping basketDownload print view
* = Available on request.

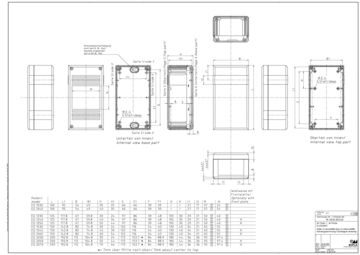

Product drawing
Enclosure concept
Characteristics
Dimensions
200 x 112 x 50 mm
Colour of enclosure group
light grey/agate grey
Protection class
IP
40
NEMA
1
Enclosure Material
PS (polystyrene); for details see Technical Information
Operating temperature: -10/65° C
Scope of delivery

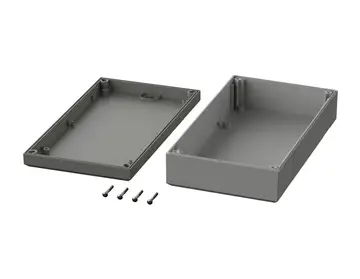

Lid, base, screws
Note
Higher protection class on request.
The dimensions are approximate values. The exact values can be found in the respective product drawing.
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a
pressure compensation
element.
In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
Technical documentation / Downloads
3D product data in STEP format:
Login to download
Drawing for mechanical processing:
32205002 EG-2050-G.dxf
(556.1 KB)
Product drawing in PDF format:
32205002 EG-2050.pdf
(127.2 KB)
Product drawing in DXF format:
32205002 EG-2050.dxf
(782.5 KB)
- elegant en.pdf(580.7 KB)
Matching accessories
Covers for keyhole suspension
Lid fixing set from above for EG 12.. - 20..
Press-in tool for EG-SV
Quick-release fastener for EG 12.. – 20.., polyamide
Rubber feet
