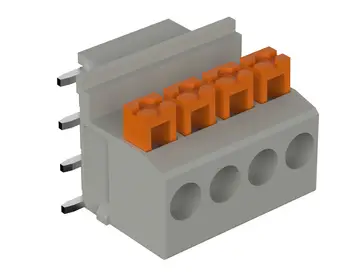

CombiNorm-Connect | Spring-cage terminal blocks, single section, 5 mm pitch, for wave soldering processes
FKPK 4-L
Order no.: 67840041.S
4-pole, soldering pins on the left
FKPK 4-L
Order no.: 67840041.S
4-pole, soldering pins on the left
Add to the shopping basket
Show the shopping basketDownload print view
* = Available on request.
Product drawing
Enclosure concept
Characteristics
Enclosure Material
Polyamide, UL 94 V0; for details see Technical Information
Scope of delivery
50 connection terminals
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a
pressure compensation
element.
In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
Technical documentation / Downloads
3D product data in STEP format:
Login to download
Product drawing in PDF format:
67840041 FPK-4-L.pdf
(352.9 KB)
Product drawing in DXF format:
67840041 FPK-4-L.dxf
(5.5 MB)
- combinorm-connect en.pdf(736.2 KB)
