BOPLA-Arteb | 655 Enclosures

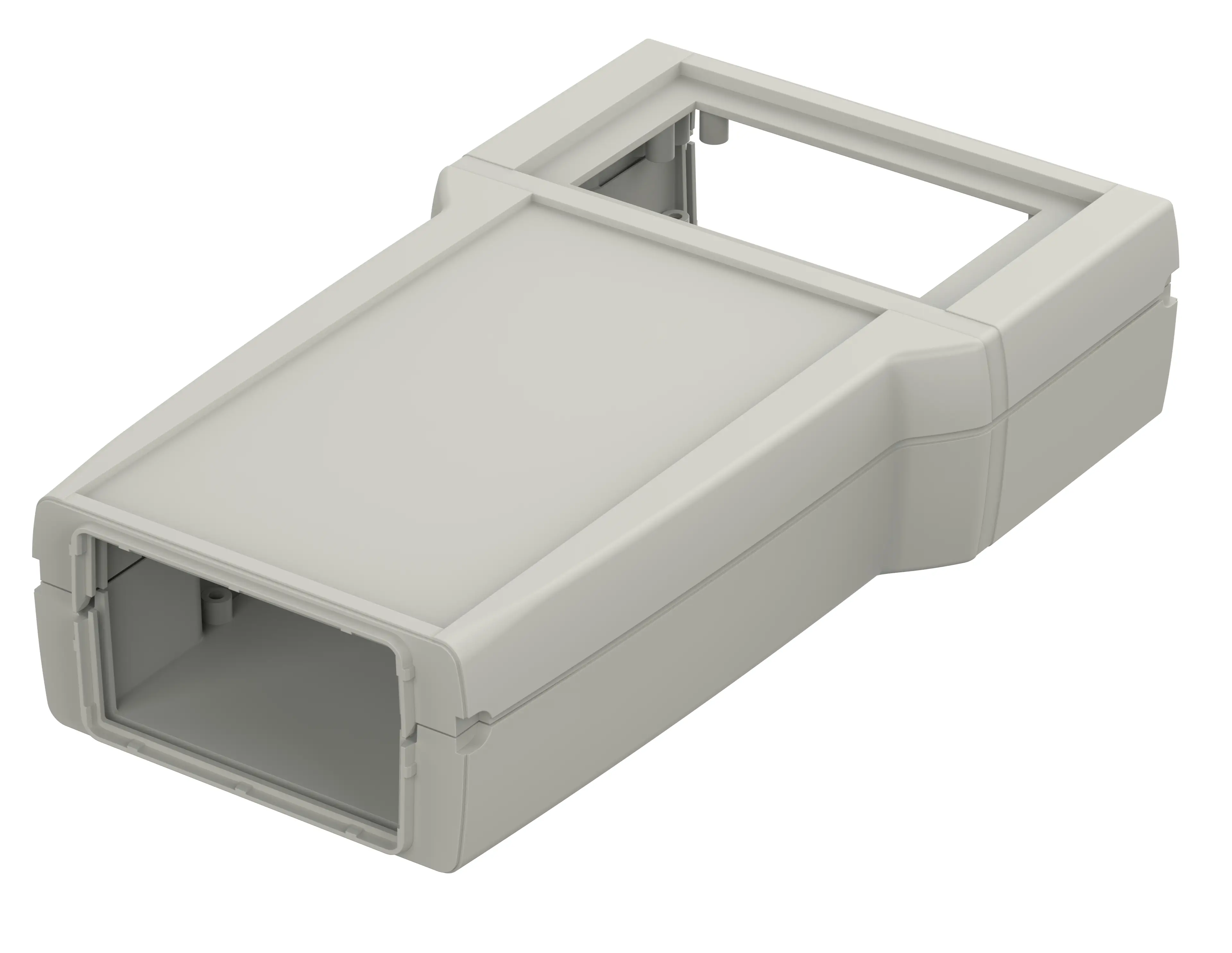

ART 655 DIS
Order no.: 34165512
Membrane keypad area 69.9 x 119.9 x 1.5 mm deep
ART 655 DIS
Order no.: 34165512
Membrane keypad area 69.9 x 119.9 x 1.5 mm deep
Add to the shopping basket
Show the shopping basketDownload print view
* = Available on request.

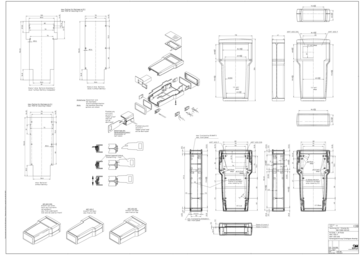

Product drawing
Enclosure concept
Characteristics
Dimensions
204 x 110 x 41 mm
Colour of enclosure group
Agate grey
Protection class
IP
40
,
65
NEMA
1,3
Enclosure Material
Enclosure and caps made of ABS, seal made of TPE; for details see Technical Information
Operating temperature: -25/70° C
Scope of delivery

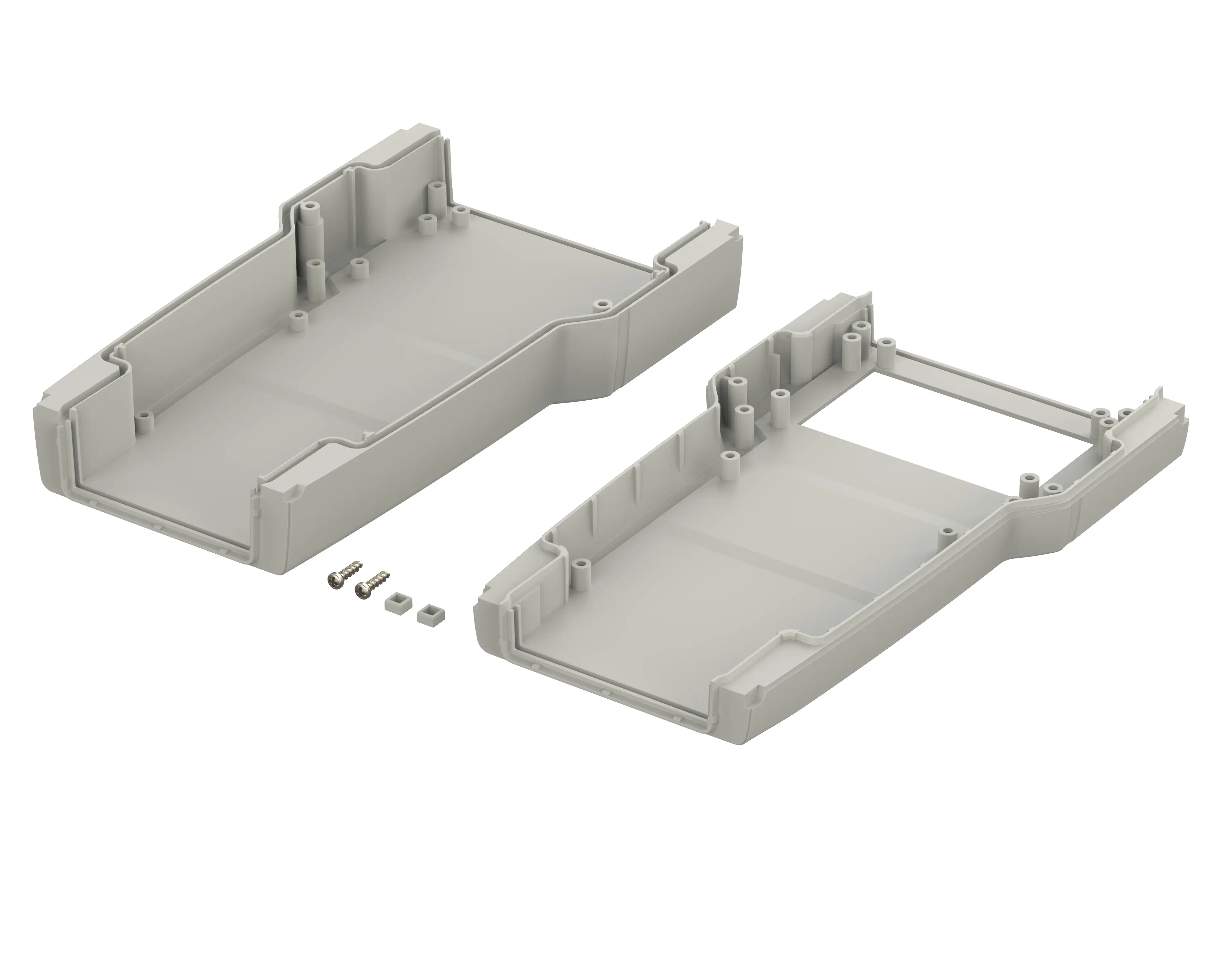

Lid and base including fitted, tool-operated snap locks for caps. Versions BE... with additional battery compartment BE 30 or BE 60
PU = 5 pieces
Note
Please order caps and display screens separately.
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a
pressure compensation
element.
In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
Technical documentation / Downloads
3D product data in STEP format:
Login to download
Drawing for mechanical processing:
34165512 ART-655-DIS-G.dxf
(1.1 MB)
Product drawing in PDF format:
34165512 ART-655-DIS.pdf
(272.1 KB)
Product drawing in DXF format:
34165512 ART-655-DIS.dxf
(3.4 MB)
- bopla-arteb en.pdf(1.3 MB)
- RoHS compliance status:
- Konform
- REACH SVHC over 0,1%:
- Kein SVHC
Matching accessories
Battery holders
34165574
For 2 mignon batteries (LR6, R06, AM3, E91, AA), connection clip included in scope of delivery
34165576
For 4 mignon batteries (LR6, R06, AM3, E91, AA), connection clip included in scope of delivery
34165577
For 6 mignon batteries (LR6, R06, AM3, E91, AA), connection clip included in scope of delivery
Battery shafts with integrated front panels, PP
34165561
For battery holder BH 2MN (2 mignon batteries) or for 9V block battery in ART 655
Caps for ART 665
Caps for ART 665
Dismantling tool for ART 555-865
Display screens with stick-on frame, polycarbonate
IP 65 seal set
Snap locks for ART 555, 655 and 865, polyamide
Universal clip and tip-up clip
