Bocube | Enclosures, polycarbonate UL 94 V0, single-coloured

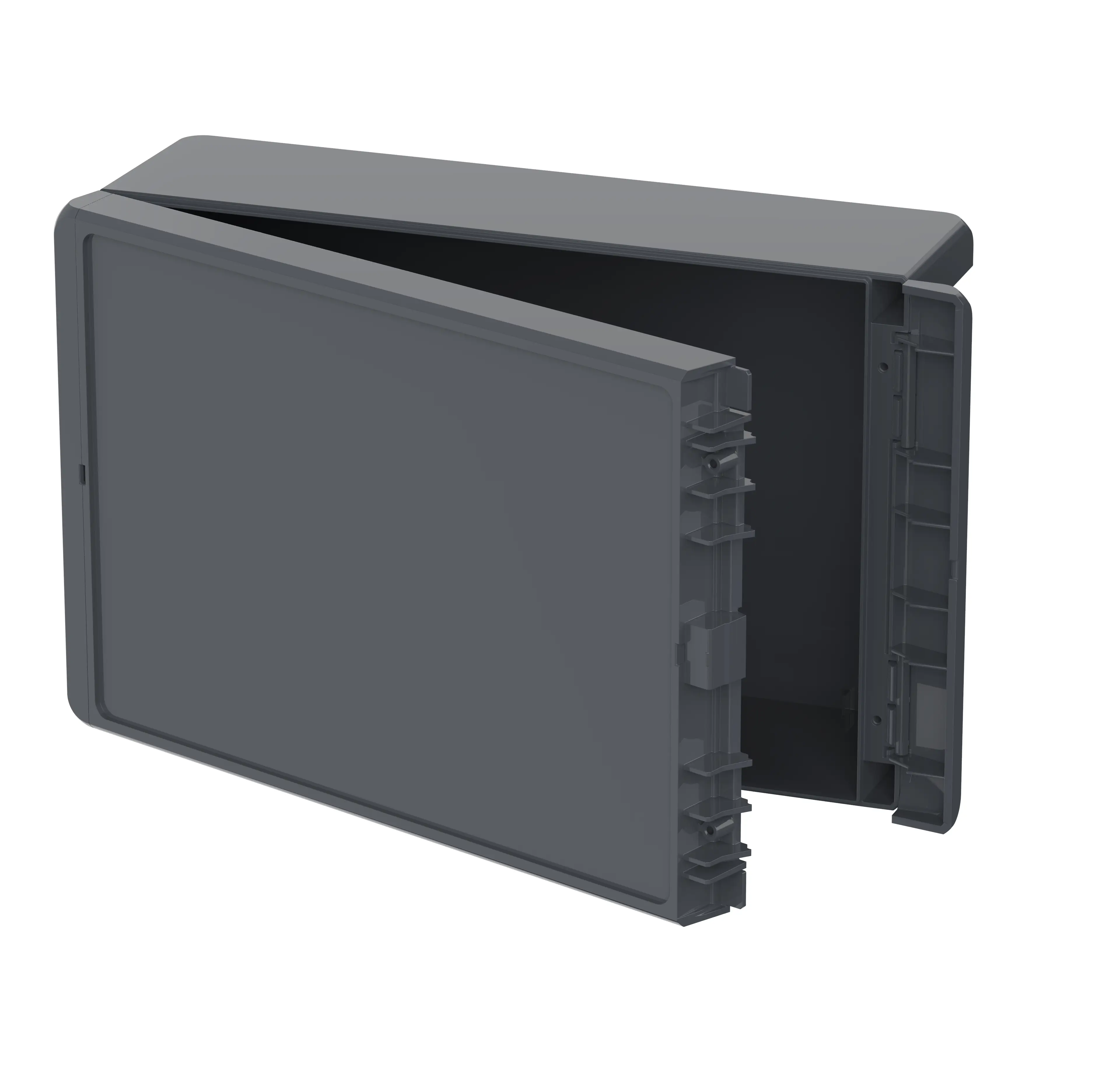

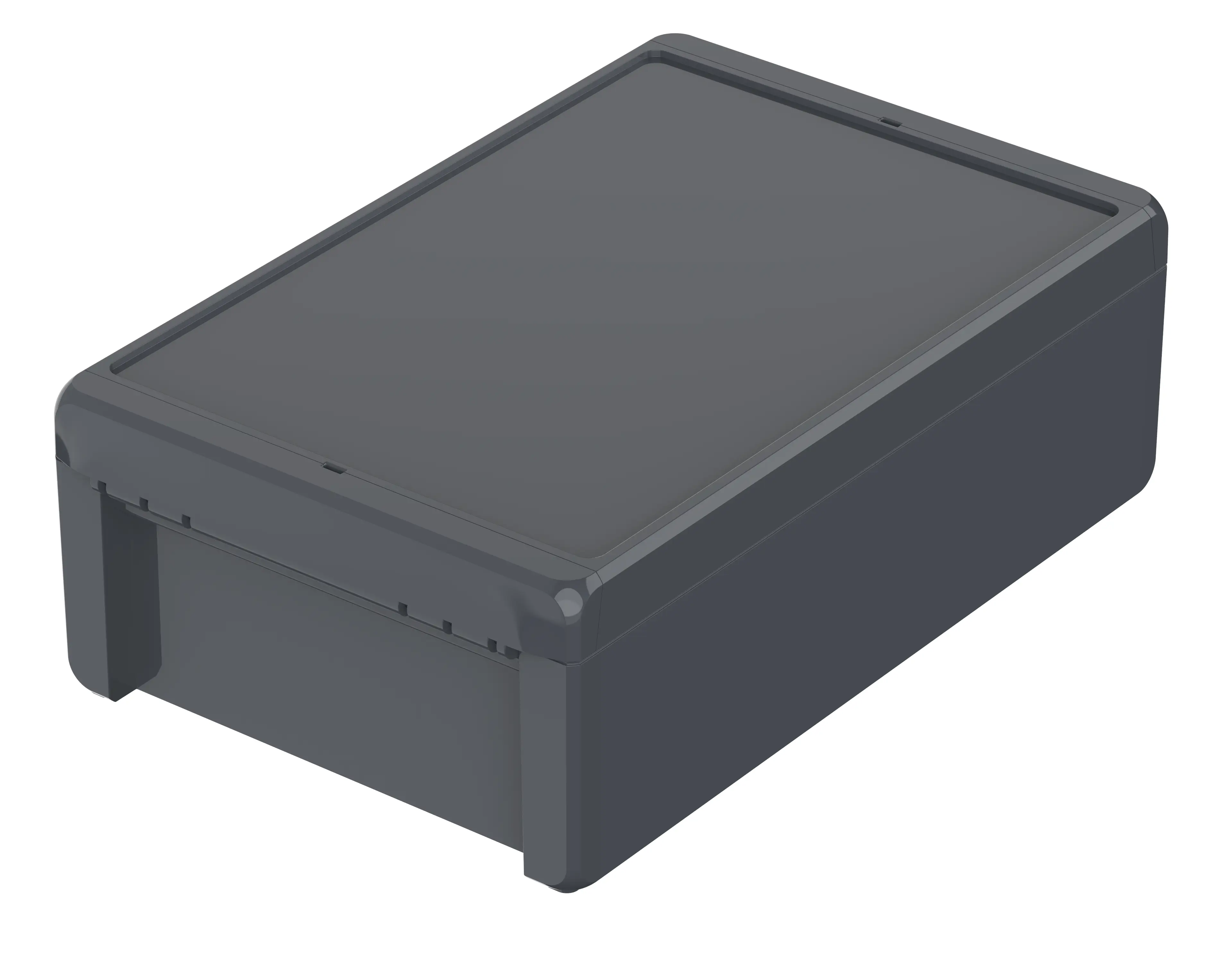

B 261709 PC-V0 7024
Order no.: 96016334
B 261709 PC V0 7024 1 B 96016334
B 261709 PC V0 7024 1a B 96016334
B 261709 PC V0 7024 2 B 96016334
B 261709 PC V0 7024 1 B 96016334
B 261709 PC V0 7024 1a B 96016334
B 261709 PC V0 7024 2 B 96016334
B 261709 PC-V0 7024
Order no.: 96016334
Add to the shopping basket
items
items
Show the shopping basketDownload print view
* = Available on request.

Product drawing

Enclosure concept

Bocube

Characteristics

Dimensions
271 x 170 x 90 mm
Colour of enclosure group
Graphite grey, similar to RAL 7024
Protection class
IP 66 , 68   –  IP68: 1,2m (2 hours)
NEMA
3
Impact protection
IK 07
Enclosure Material

ABS or PC UL 94 V-0 (PC V-0 material is flame-resistant, self-extinguishing and suitable for outdoor use; f1 listing acc. to UL 746C)



PU seal, foamed



for details please see Technical Information

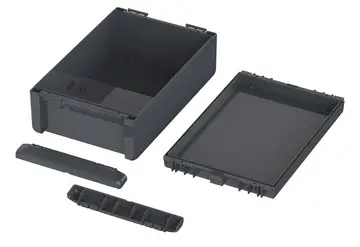

Scope of delivery

Lid and base, hinged quick-release catches

Important!

To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.

In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.

» Additional information

Technical documentation / Downloads

3D product data in STEP format:
Product drawing in PDF format:
Product drawing in DXF format:
» Important information regarding the following material data
EN-45545 Lexan-945U Certificate R22-HL3 (Railway certificate – enclosures)

Matching accessories

Blanking plugs to determine the hinge side

96410005
Light grey
96410000
Flame red
96410004
Graphite grey

DIN rails DIN EN 60715 G 32, galvanised steel

22322301
For EM/ET 224, EM/ET 233-236, EM/ET 239-242, B 2617.., B 2613.., B 2736.. (crosswise)

DIN rails DIN EN 60715 TH 15, galvanised steel

22152301
For EM/ET 224, EM/ET 233-236, EM/ET 239-242, B 2617.., B 2613.., B 2736.. (crosswise)

DIN rails DIN EN 60715 TH 35, galvanised steel

22352301
For EM/ET 224, EM/ET 233-236, EM/ET 239-242, B 2617.., B 2613.., B 2736.. (crosswise)

Distance bolts

96758000
ND = 2.4 - 2.6, for B....09
96756000
ND = 2.4-2.6, for B....09 if a mounting plate is used

Front panels, natural-coloured anodised aluminium

96706300
For B 2617.., front panel thickness 2.5 mm

Hand-operated hinged catch (set), polycarbonate UL 94 V0 or ABS, max. IP66 / IP67

96910303
For B 2617..
Traffic yellow
96910305**
For B 2617..
Light grey
96910304**
For B 2617..
Graphite grey
96910309
For B 2617..
Mint green
96910302
For B 2617..
Ultramarine blue
96910300
For B 2617..
Flame red

Hinged quick-release catches (Set), polycarbonate UL 94 V0 or ABS

96310305
For B 2617..
Light grey
96310304
For B 2617..
Graphite grey
96310300
For B 2617..
Flame red
96310302
For B 2617..
Ultramarine blue
96310303
For B 2617..
Traffic yellow
96310309
For B 2617..
Mint green

Mast mounting, stainless steel V2A, uncoated

96500167
96500265

Mounting panels, laminated paper, 2 mm

96606300
For B 2617..

Pressure compensation membrane DAE

52011000
Self-adhesive membrane ø 11 mm

Sets of screws

96300000
D (for optional screwing of enclosures B 0808 - 2617)
96700000
A (for fixing front panels)
96600010
C (for fixing mounting panels B M 1008-2736)

Wall brackets

96510005
For B 08... - B 26...
Light grey
96510004
For B 08... - B 26...
Graphite grey
