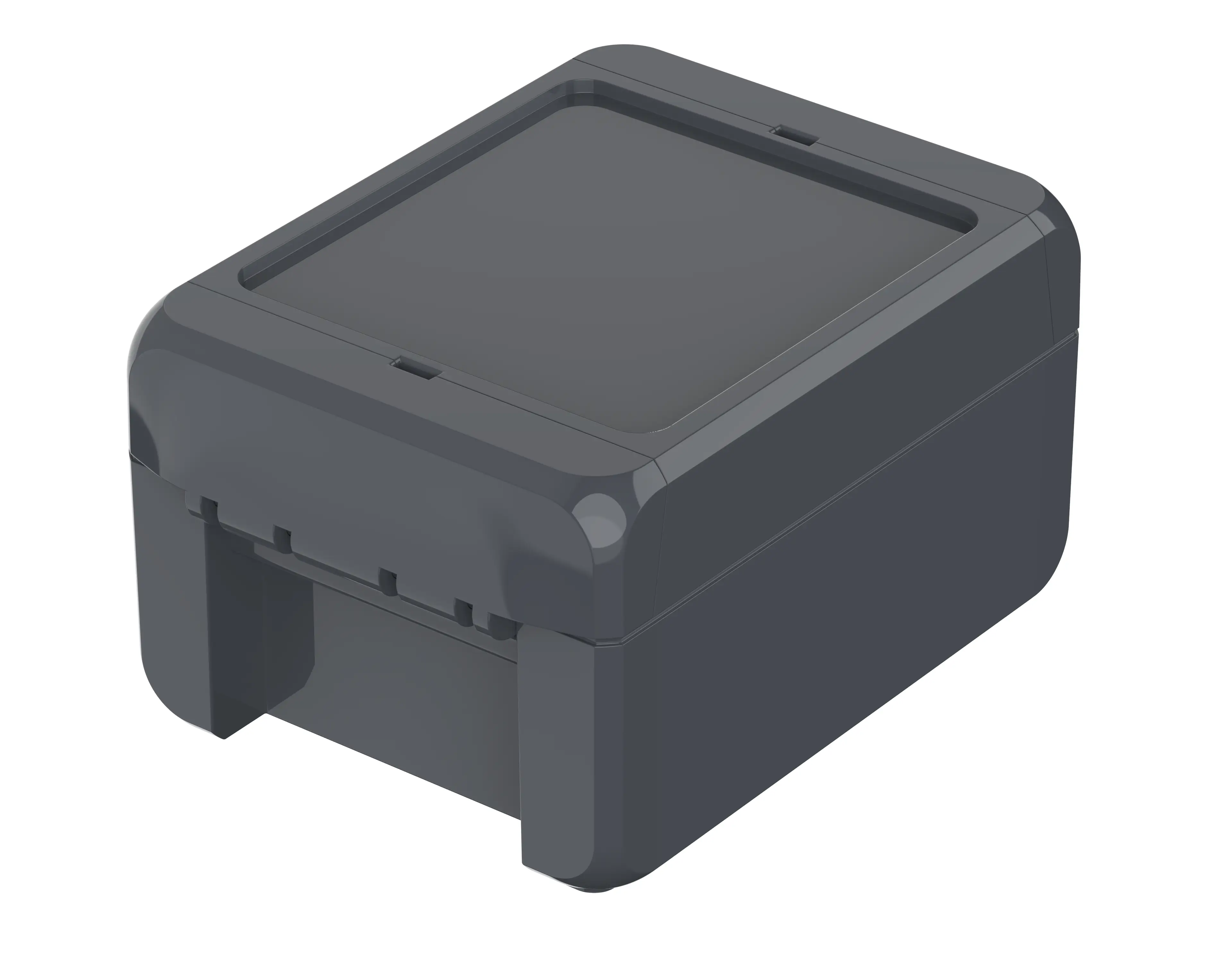

Bocube | Enclosures, polycarbonate UL 94 V0, single-coloured

B 100806 PC-V0 7024
Order no.: 96012124
B 100806 PC V0 7024 1 B 96012124
B 100806 PC V0 7024 1a B 96012124
B 100806 PC V0 7024 2 B 96012124
B 100806 PC V0 7024 1 B 96012124
B 100806 PC V0 7024 1a B 96012124
B 100806 PC V0 7024 2 B 96012124
B 100806 PC-V0 7024
Order no.: 96012124
Add to the shopping basket
items
items
Show the shopping basketDownload print view
* = Available on request.

Product drawing

Enclosure concept

Bocube

Characteristics

Dimensions
113 x 80 x 60 mm
Colour of enclosure group
Graphite grey, similar to RAL 7024
Protection class
IP 66 , 68   –  IP68: 1,2m (2 hours)
NEMA
3
Impact protection
IK 07
Enclosure Material

ABS or PC UL 94 V-0 (PC V-0 material is flame-resistant, self-extinguishing and suitable for outdoor use; f1 listing acc. to UL 746C)



PU seal, foamed



for details please see Technical Information

Scope of delivery

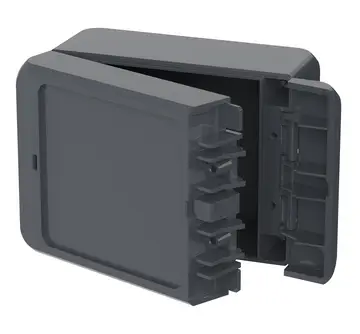

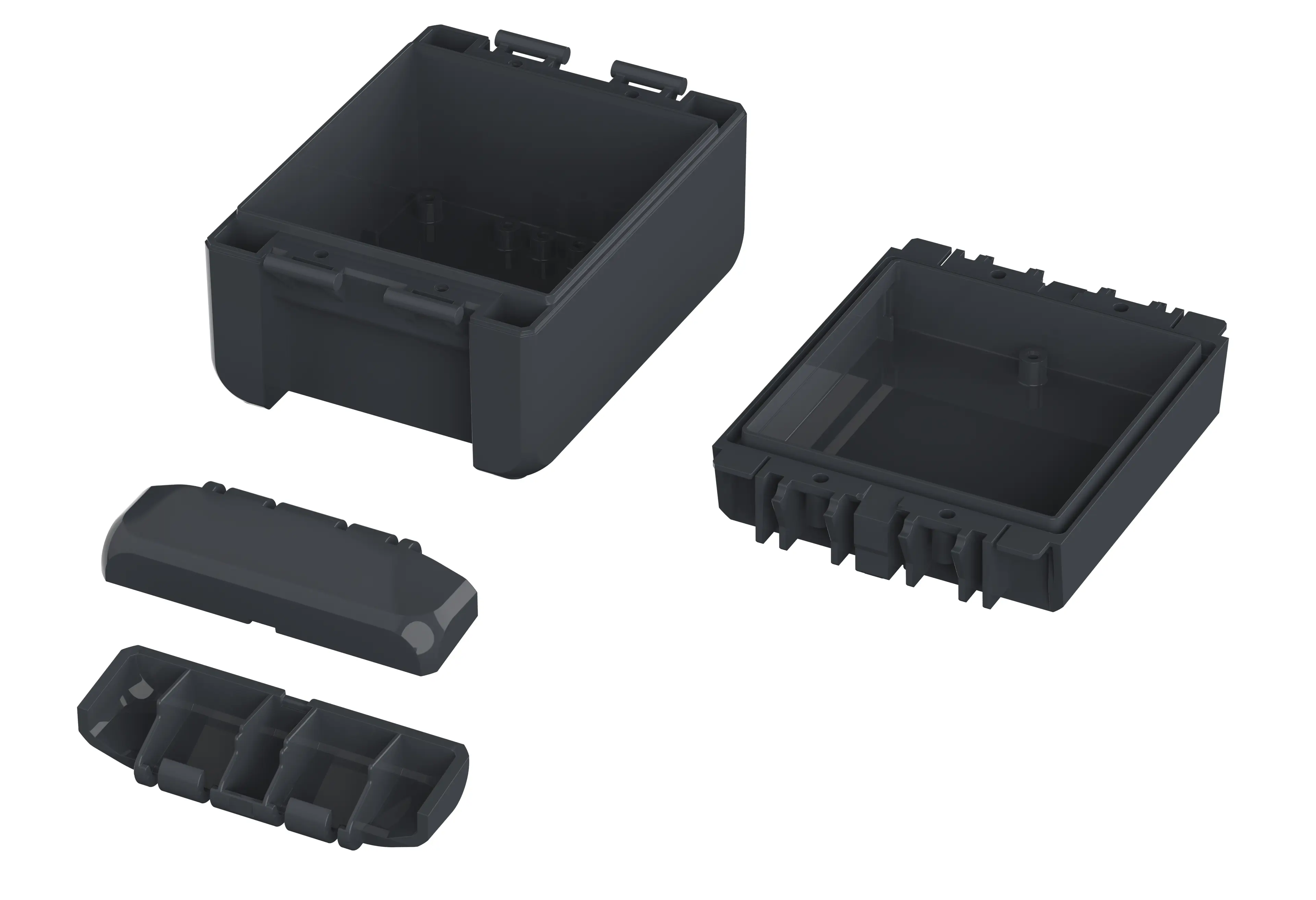

Lid and base, hinged quick-release catches

Important!

To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a pressure compensation element.

In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
