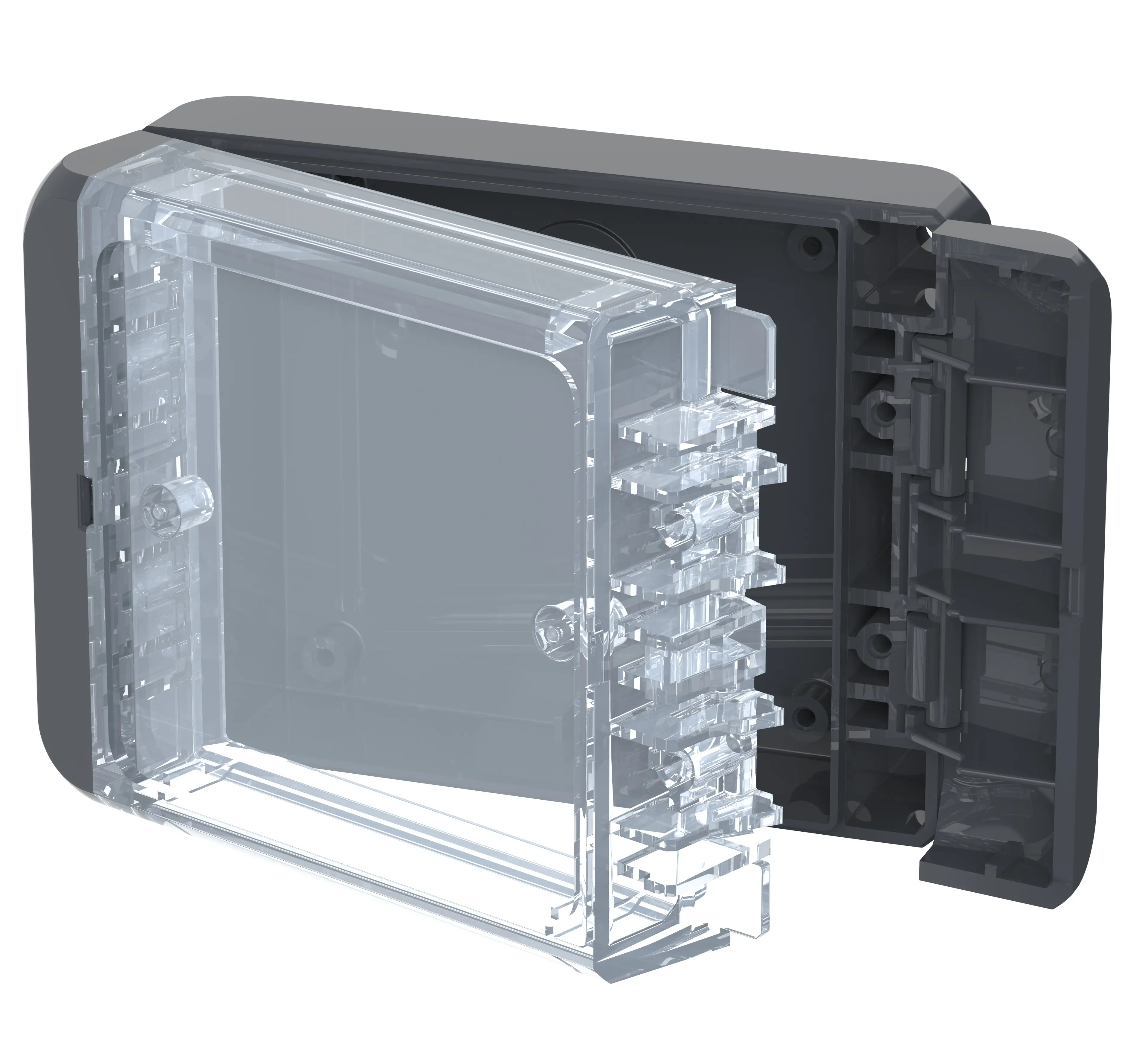

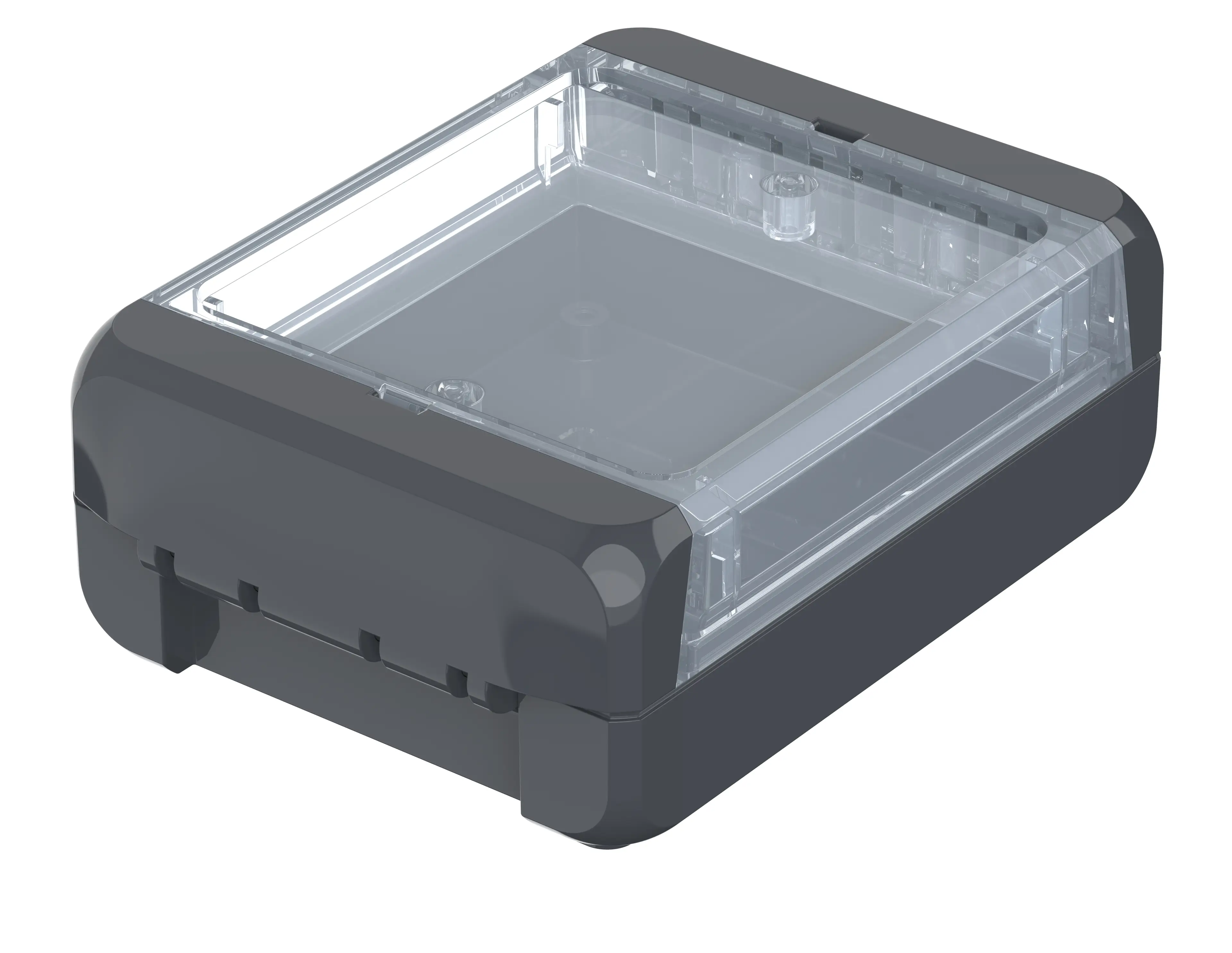

Bocube | Enclosures, polycarbonate UL 94 V0, crystal-clear lid
B 100804 PC-V0-G 7024
Order no.: 96022144
B 100804 PC-V0-G 7024
Order no.: 96022144
Add to the shopping basket
Show the shopping basketDownload print view
* = Available on request.
Product drawing
Enclosure concept
Characteristics
Dimensions
113 x 80 x 40 mm
Colour of enclosure group
Graphite grey, similar to RAL 7024
Protection class
IP
66
,
68
– IP68: 1,2m (2 hours)
NEMA
3
Impact protection
IK 07
Enclosure Material
ABS or PC UL 94 V-0
PC V-0 material is flame-resistant, self-extinguishing and suitable for outdoor use; The highest flammability rating of UL 94 5V is achieved even with slightly reduced outdoor suitability (f2 listing acc. to UL 746).
PU seal, foamed
for details please see Technical Information
Operating temperature: -25/100° C

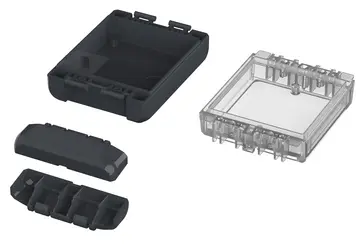

Scope of delivery
Lid and base, hinged quick-release catches
Note
The dimensions are approximate values. The exact values can be found in the respective product drawing.
Important!
To compensate for pressure when temperatures change and cause moisture in the enclosure, we we recommend that you use a
pressure compensation
element.
In order to ensure that you can determine the correct quantity of elements for your application, we are providing you here with a DAE calculator.
Technical documentation / Downloads
3D product data in STEP format:
Login to download
Drawing for mechanical processing:
96022144 B-100804-PC-V0-G-7024-G.dxf
(2.8 MB)
Product drawing in PDF format:
96022144 B-100804-PC-V0-G-7024.pdf
(216.3 KB)
Product drawing in DXF format:
96022144 B-100804-PC-V0-G-7024.dxf
(3.6 MB)
- 688 WPZ-Bocube-PC-V0 DE.pdf(184.6 KB)
- 688 WPZ-Bocube-PC-V0 EN.pdf(179.1 KB)
- 689 WPZ-Bocube-ABS DE.pdf(165.1 KB)
- 689 WPZ-Bocube-ABS EN.pdf(160.3 KB)
PC Lexan945U
(Enclosure)
PC Lexan945AU
(Clear lid)
EN-45545 Lexan-945U Certificate R22-HL3
(Railway certificate – enclosures)
EN-45545 Lexan945AU Certificate R22-HL3
(Railway certificate – crystal clear cover)
- bocube en.pdf(1.5 MB)
- RoHS compliance status:
- Konform
- REACH SVHC over 0,1%:
- (UV-329) 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (CAS-Nr.: 3147-75-9)
- Scip No.:
- 5d42c569-183c-42c9-97ec-d3cf6dc33be0
