Interzoll Modul | Profile / Profilsätze

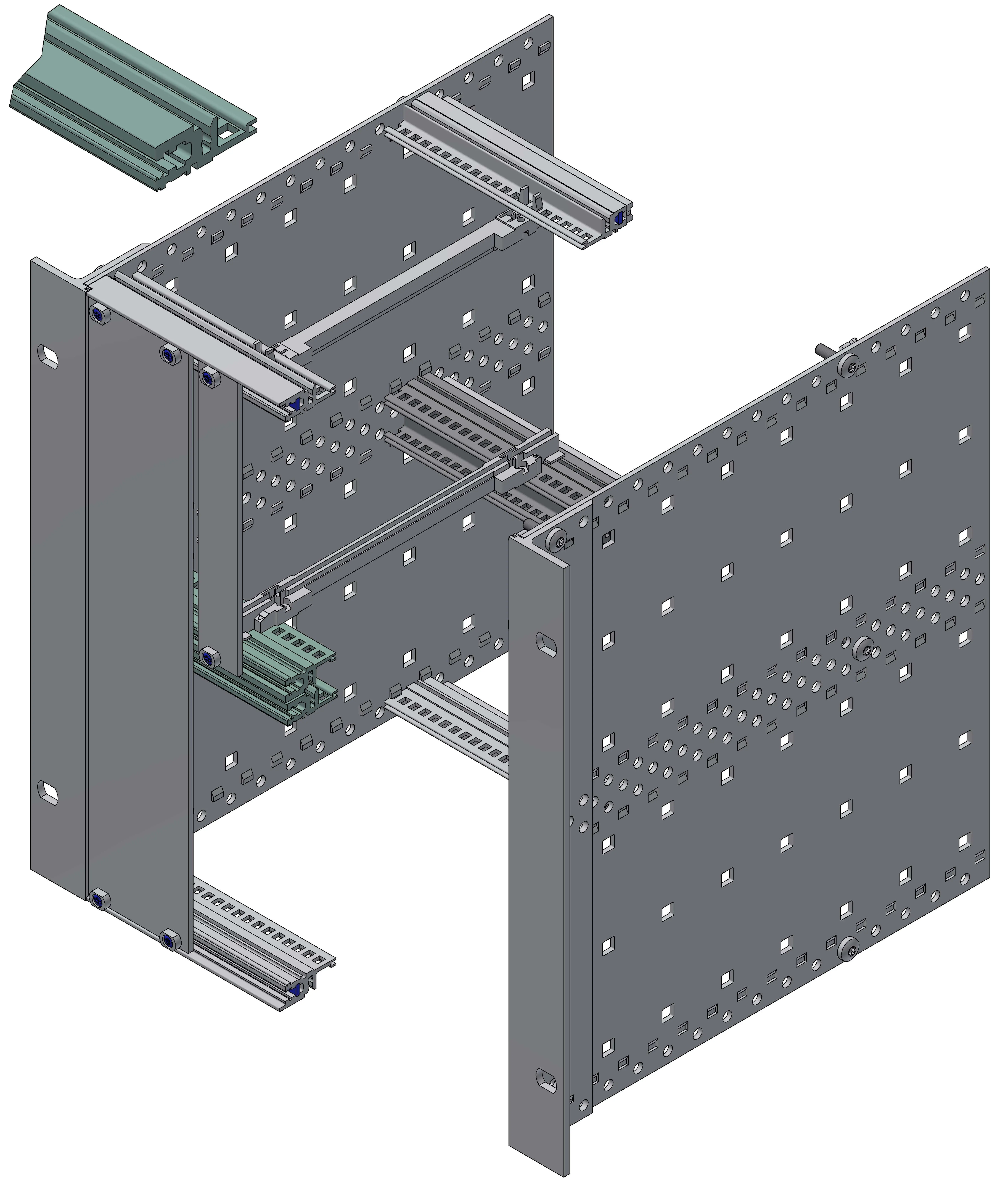

Frontprofile ohne Dach, Alu naturfarben eloxiert, Kontaktflächen leitfähig
Modell | Best.-Nr. | TE |
PF/M 00042-OD | 86542310 | 42 |
PF/M 00063-OD | 86563310 | 63 |
PF/M 00084-OD | 86584310 | 84 |
Für den Einbau hinter einer Gesamtfrontplatte, z.B. 6 HE. EMV-Feder bitte separat bestellen.
1 Profil
Frontprofile mit kurzem Dach (Standard), Alu naturfarben eloxiert, Kontaktflächen leitfähig
Modell | Best.-Nr. | TE |
PF/M 00042 | 86542320 | 42 |
PF/M 00063 | 86563320 | 63 |
PF/M 00084 | 86584320 | 84 |
EMV-Feder bitte separat bestellen.
1 Profil

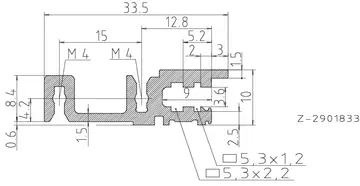

Frontprofile für hohe mechanische Beanspruchung, Alu naturfarben eloxiert, Kontaktflächen leitfähig, 2-Lochbefestigung
Modell | Best.-Nr. | TE |
PF/M 00042-BN | 86542330 | 42 |
PF/M 00063-BN | 86563330 | 63 |
PF/M 00084-BN | 86584330 | 84 |
EMV-Feder bitte separat bestellen.
1 Profil

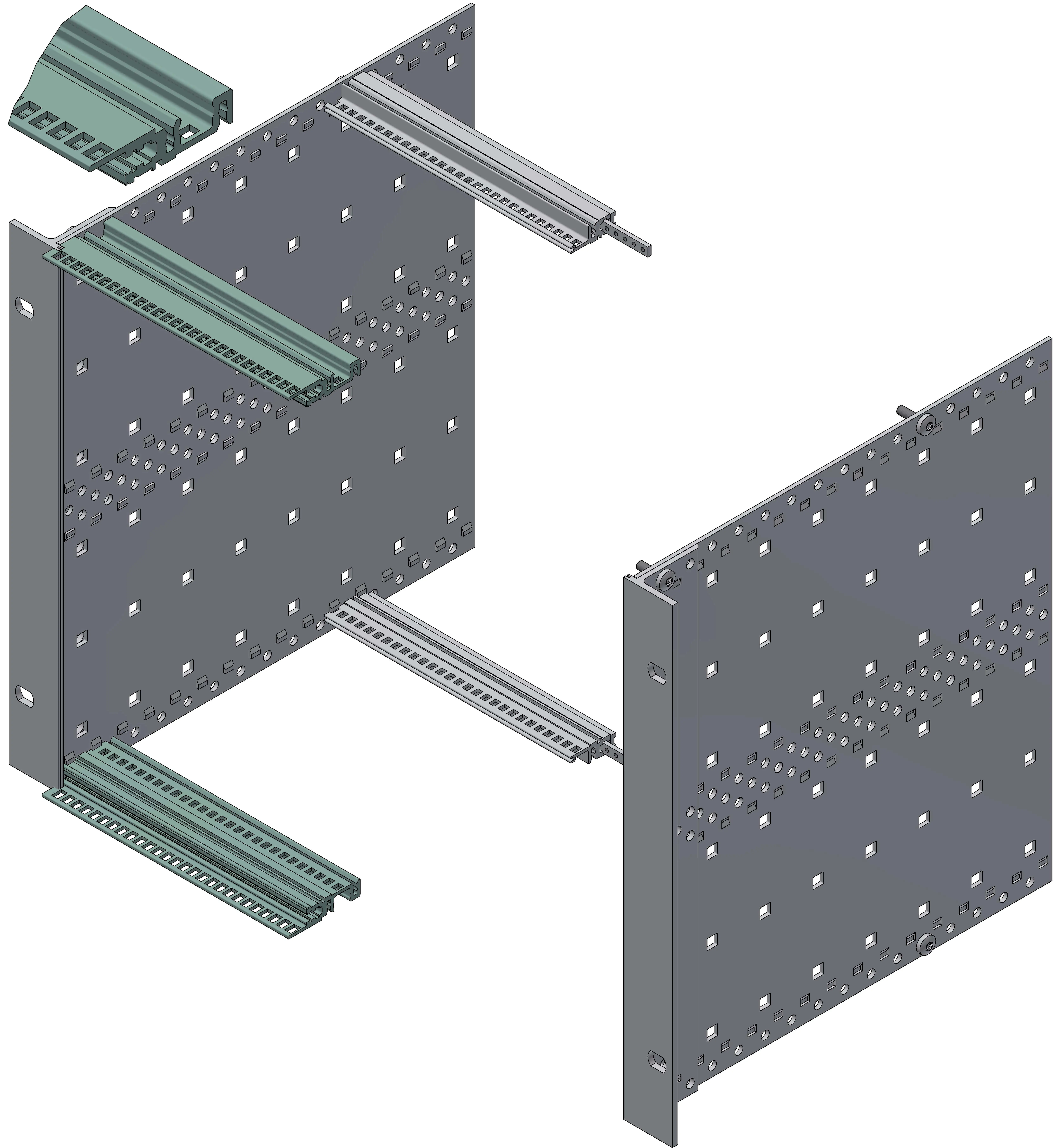

Frontprofile für hohe mechanische Beanspruchung und Aushebegriff nach IEC 60297-3-102 / IEEE 1101.10, Alu naturfarben eloxiert, Kontaktflächen leitfähig, 2-Lochbefestigung
Modell | Best.-Nr. | TE |
PF/M 00042-BN-HG | 86542340 | 42 |
PF/M 00063-BN-HG | 86563340 | 63 |
PF/M 00084-BN-HG | 86584340 | 84 |
EMV-Feder bitte separat bestellen.
1 Profil

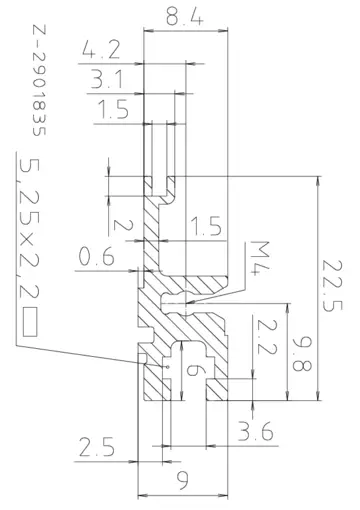

Busprofile, Alu naturfarben eloxiert, für indirekte Busplatinen-Befestigung
Modell | Best.-Nr. | TE |
PB/M 00042 | 86542410 | 42 |
PB/M 00063 | 86563410 | 63 |
PB/M 00084 | 86584410 | 84 |
Isolierstreifen und EMV-Feder bitte separat bestellen.
1 Profil

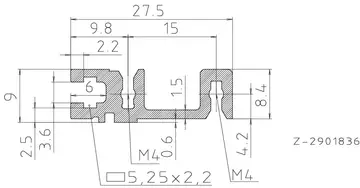

Busprofile für hohe mechanische Beanspruchung, Alu naturfarben eloxiert, Kontaktflächen leitfähig, mit 2-Lochbefestigung, für indirekte Busplatinen-Befestigung
Modell | Best.-Nr. | TE |
PB/M 00042-BN | 86542420 | 42 |
PB/M 00063-BN | 86563420 | 63 |
PB/M 00084-BN | 86584420 | 84 |
Isolierstreifen und EMV-Feder bitte separat bestellen.
1 Profil

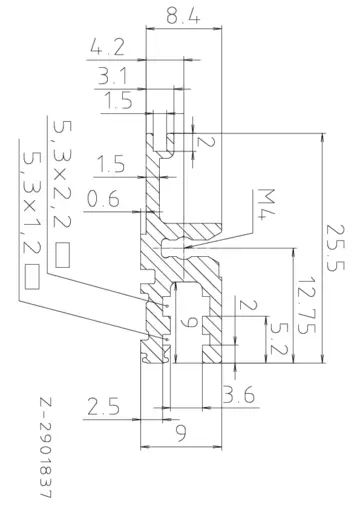

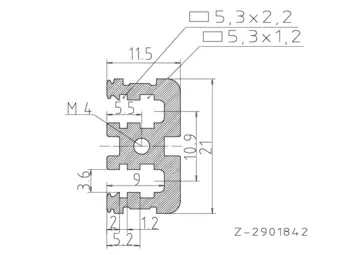

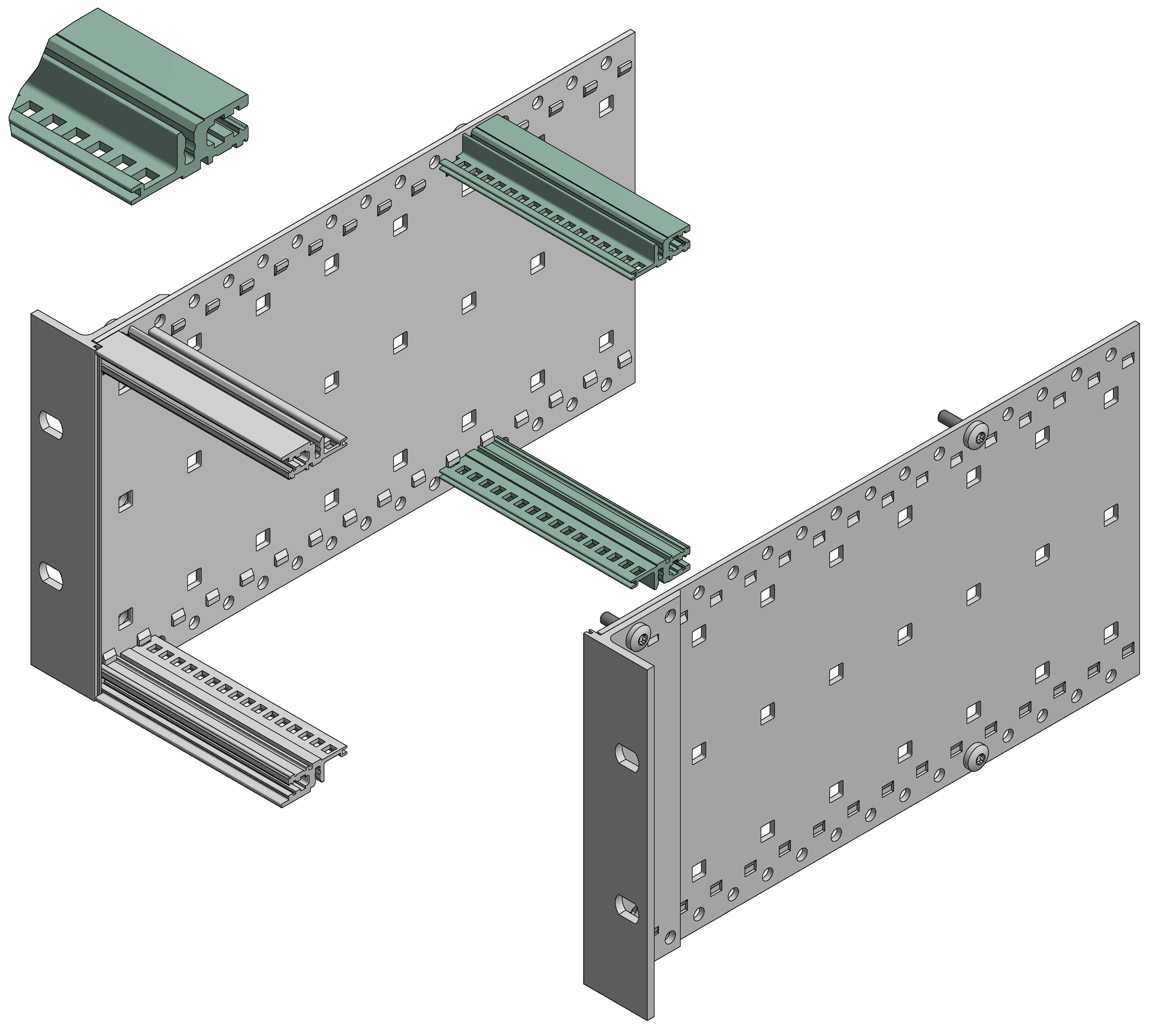

Busprofile mit integriertem Isolierstreifenabstand, Alu naturfarben eloxiert, Kontaktflächen leitfähig, für direkte Busplatinen-Befestigung
Modell | Best.-Nr. | TE |
PBIS/M 00042 | 86542430 | 42 |
PBIS/M 00063 | 86563430 | 63 |
PBIS/M 00084 | 86584430 | 84 |
EMV-Feder bitte separat bestellen.
1 Profil

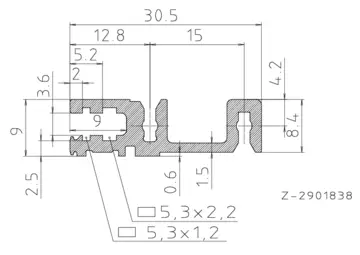

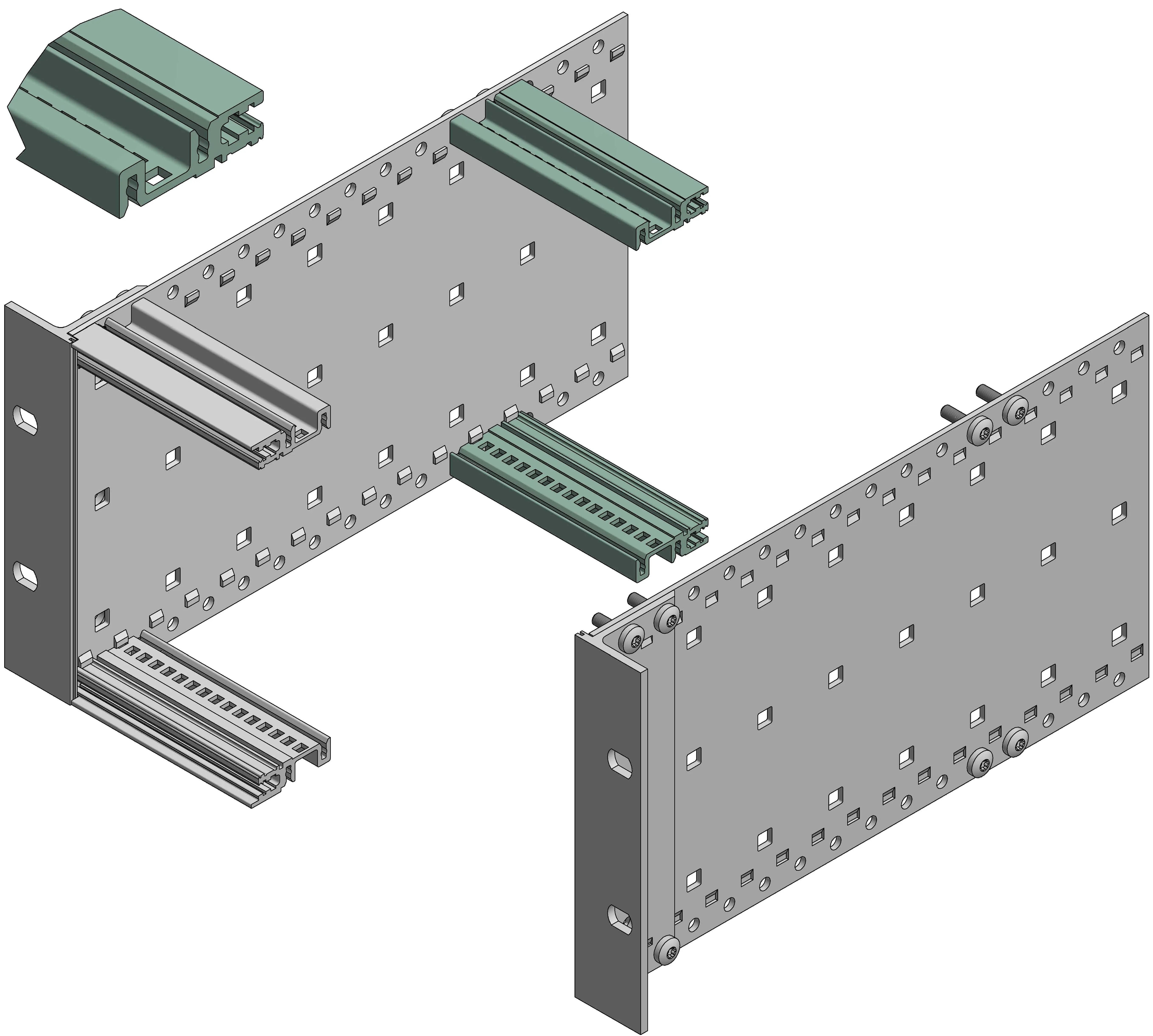

Busprofile mit integriertem Isolierstreifenabstand für hohe mechanische Beanspruchung, Alu naturfarben eloxiert, Kontaktflächen leitfähig, 2-Lochbefestigung, für direkte Busplatinen-Befestigung
Modell | Best.-Nr. | TE |
PBIS/M 00042-BN | 86542440 | 42 |
PBIS/M 00063-BN | 86563440 | 63 |
PBIS/M 00084-BN | 86584440 | 84 |
EMV-Feder bitte separat bestellen.
1 Profil
Doppelbusprofile, Alu naturfarben eloxiert, Kontaktflächen leitfähig, für indirekte Busplatinen-Befestigung
Modell | Best.-Nr. | TE |
PBD/M 00642 | 86542450 | 42 |
PBD/M 00663 | 86563450 | 63 |
PBD/M 00684 | 86584450 | 84 |
Isolierstreifen und EMV-Feder bitte separat bestellen.
1 Profil

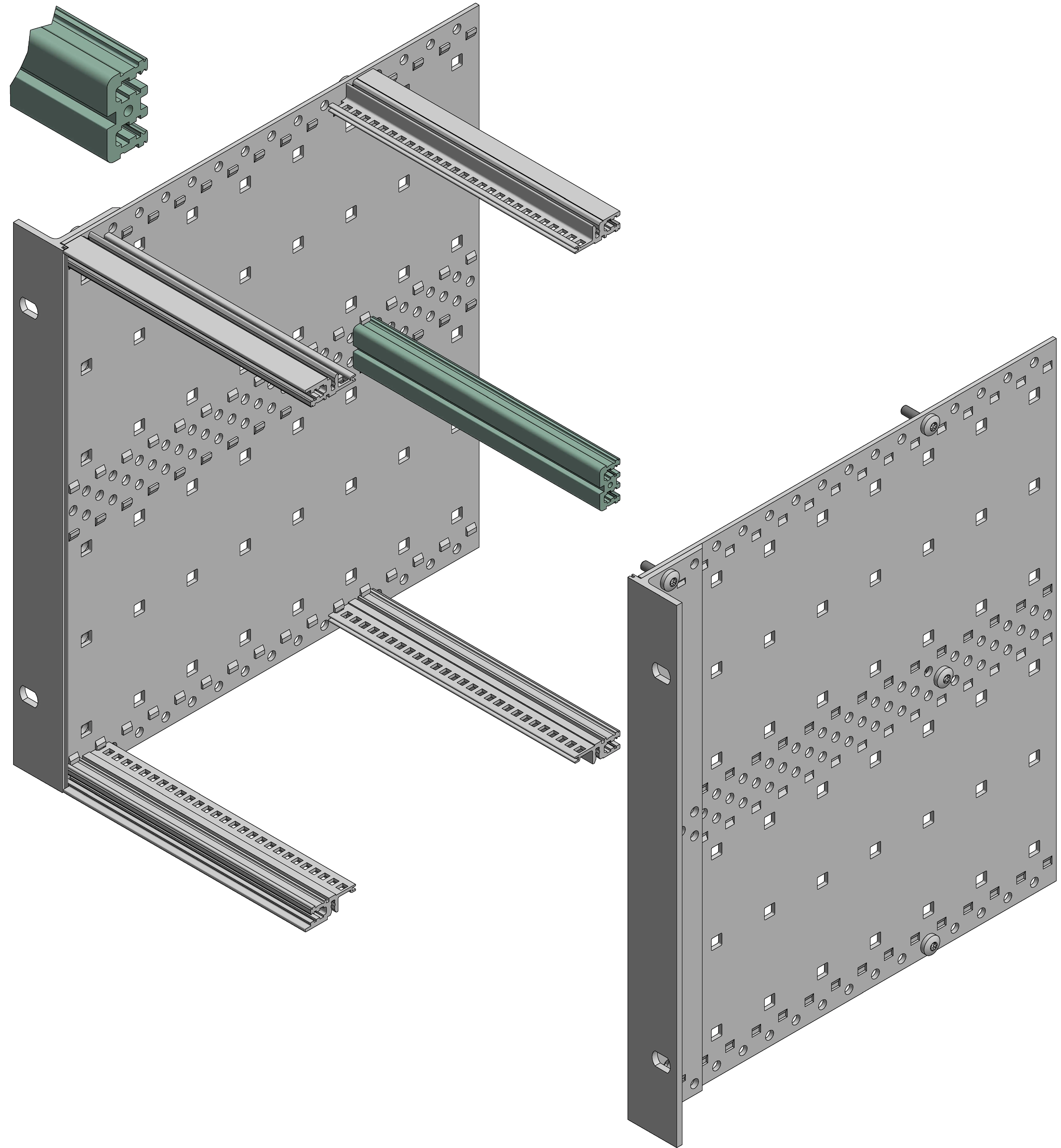

Doppelbusprofile mit integriertem Isolierstreifenabstand, Alu naturfarben eloxiert, Kontaktflächen leitfähig, für direkte Busplatinen-Befestigung
Modell | Best.-Nr. | TE |
PBDIS/M 00642 | 86542460 | 42 |
PBDIS/M 00663 | 86563460 | 63 |
PBDIS/M 00684 | 86584460 | 84 |
EMV-Feder bitte separat bestellen.
1 Profil

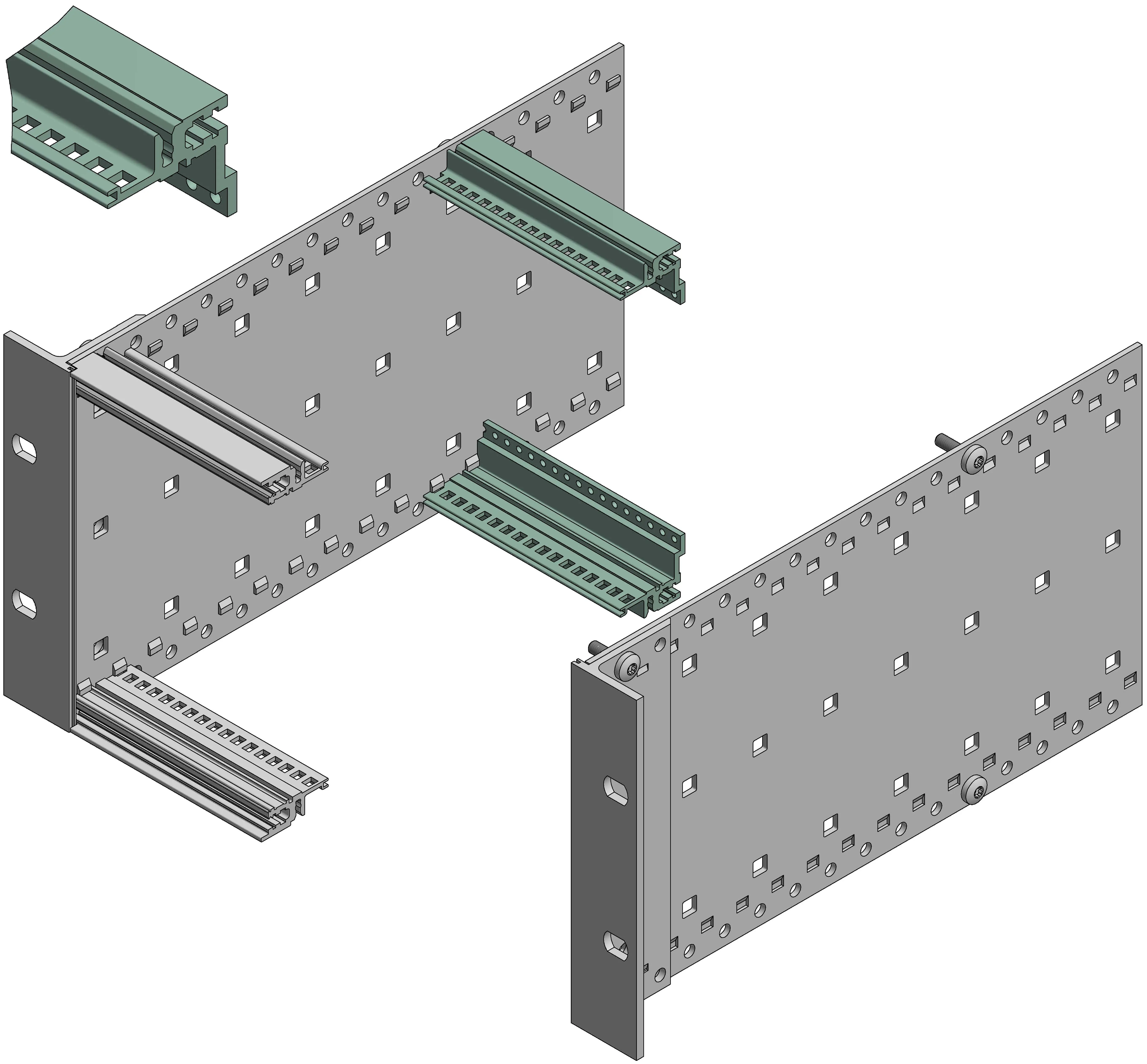

Rückprofile, Alu naturfarben eloxiert, Kontaktflächen leitfähig, für Steckverbinder nach DIN EN 60603-2 (vormals DIN 41612)
Modell | Best.-Nr. | TE |
PR/M 00042.12 | 86542510 | 42 |
PR/M 00063.12 | 86563510 | 63 |
PR/M 00084.12 | 86584510 | 84 |
1 Profil
Rückprofile für hohe mechanische Beanspruchung, Alu naturfarben eloxiert, Kontaktflächen leitfähig, 2-Lochbefestigung, für Steckverbinder nach DIN EN 60603-2 (vormals DIN 41612)
Modell | Best.-Nr. | TE |
PR/M 00042.12-BN | 86542520 | 42 |
PR/M 00063.12-BN | 86563520 | 63 |
PR/M 00084.12-BN | 86584520 | 84 |
1 Profil

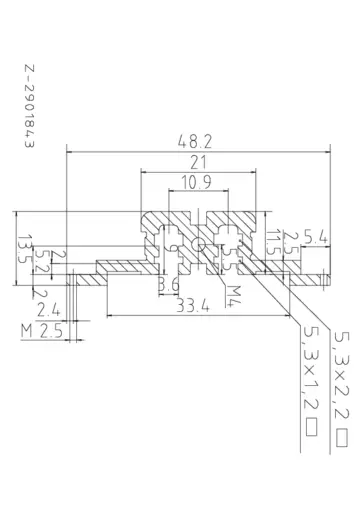

Doppelsteckerprofile, Alu naturfarben eloxiert, Kontaktflächen leitfähig, für Steckverbinder nach DIN EN 60603-2 (vormals DIN 41612)
Modell | Best.-Nr. | TE |
PSD/M 00642.12 | 86542610 | 42 |
PSD/M 00663.12 | 86563610 | 63 |
PSD/M 00684.12 | 86584610 | 84 |
1 Profil

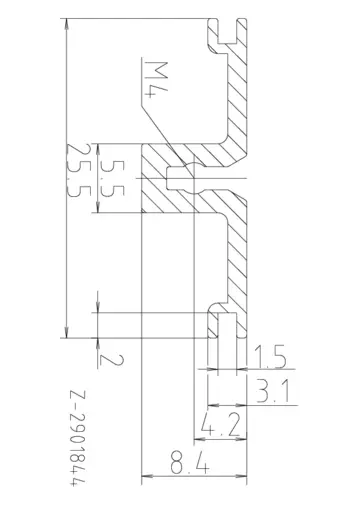

Rastprofile, Alu naturfarben eloxiert, Kontaktflächen leitfähig, für gemischten Ausbau und rückseitigen Einbau von 80 mm Compact PCI Baugruppen
Modell | Best.-Nr. | TE |
RP/M 00042 | 86542710 | 42 |
RP/M 00063 | 86563710 | 63 |
RP/M 00084 | 86584710 | 84 |
RP/M 00084 mit Ausklinkung.
1 Profil

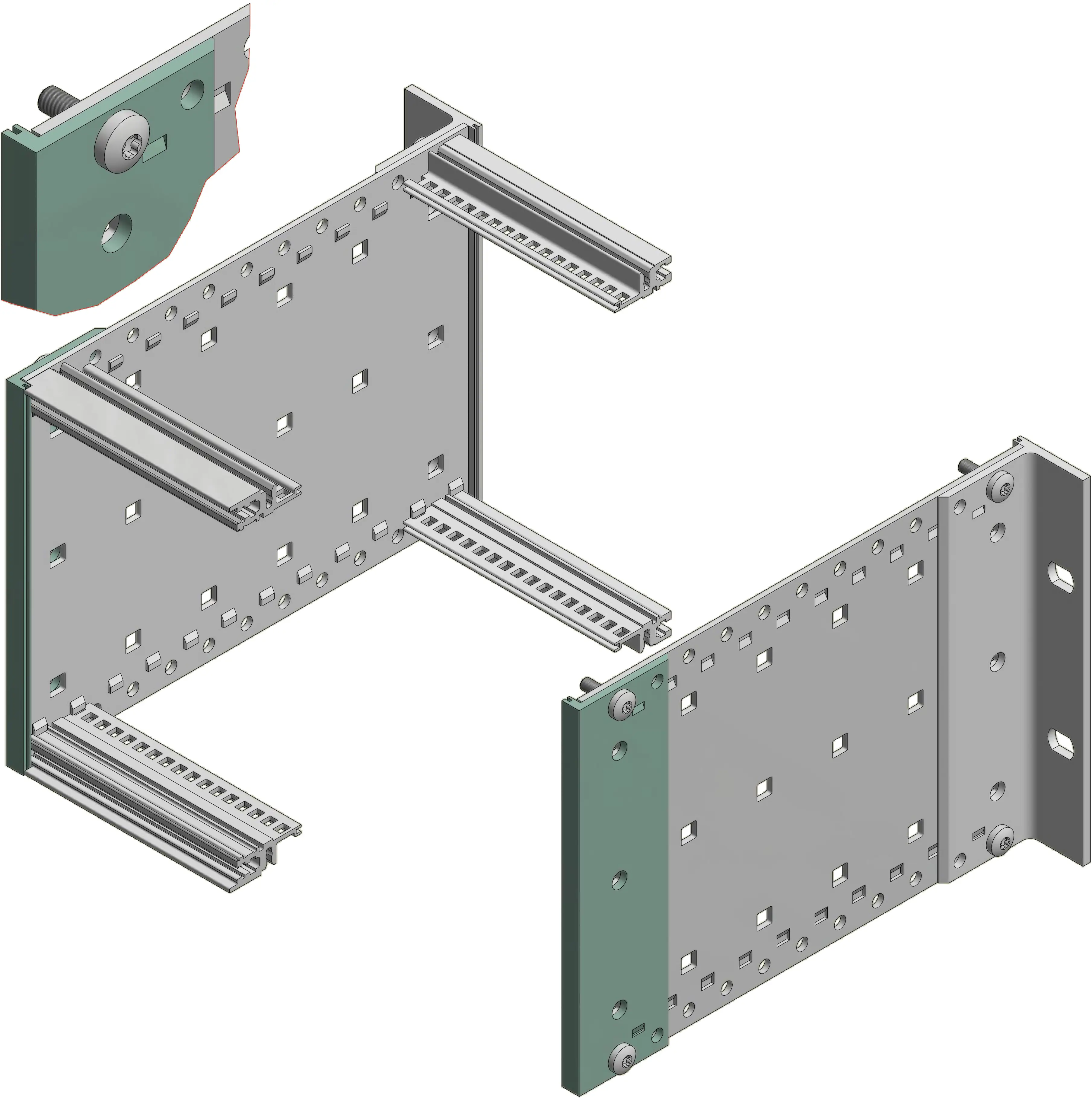

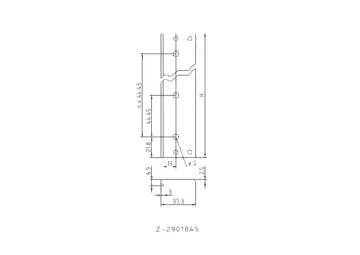

Rückwärtige Abschlussprofile, Alu passiviert, zur rückseitigen Schirmung, einsetzbar für alle Seitenwände
Modell | Best.-Nr. | HE |
RAP/M 00300 | 86503810 | 3 |
RAP/M 00600 | 86506810 | 6 |
Die Montage erfolgt mit der Profilschienenbefestigung. Zusätzliche Verschraubung optional mit BFS/M 0600 (86000060) und 1500 (86000150) . Mit dem Universalflansch auch frontseitig montierbar.
1 Profil
Z-Schienen, Alu naturfarben eloxiert, für Steckverbinder nach DIN EN 60603-2 (vormals DIN 41612)
Modell | Best.-Nr. | b1 | TE |
ZS/M 00040 | 86540210 | 203.2 | 40 |
ZS/M 00060 | 86560210 | 304.8 | 60 |
ZS/M 00084 | 86584210 | 426.7 | 84 |
Zur Erweiterung eines Busprofils für direkte Steckverbindermontage. Nicht zu verwenden bei PBIS. Montagematerial BFS/M 0300 (86000030) im Zubehör.
b1 = Profillänge
1 Z-Schiene
Lochschienen Alu passiviert, für Steckverbinder nach DIN EN 60603-2 (vormals DIN 41612)
Modell | Best.-Nr. | b1 | TE |
LS/M 00040 | 86540220 | 203.2 | 40 |
LS/M 00060 | 86560220 | 304.8 | 60 |
LS/M 00084 | 86584220 | 426.7 | 84 |
Zur Erweiterung eines Busprofils für direkte Steckverbindermontage. Nur zu verwenden bei PBIS. Montagematerial BFS/M 0400 (86000040) im Zubehör.
b1 = Profillänge
1 Lochschiene

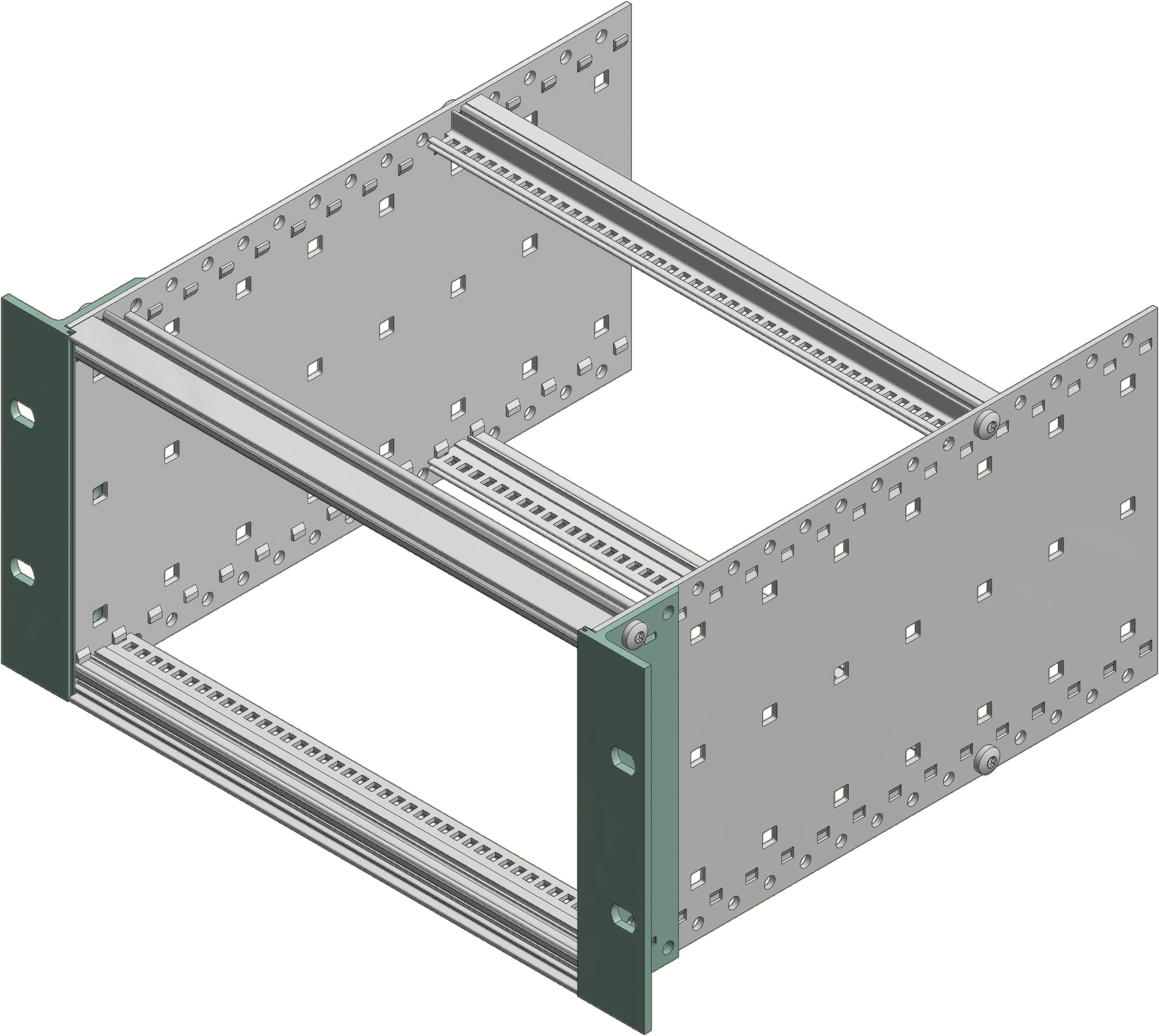

Flansche, frontseitig naturfarben eloxiert, rückseitig passiviert, für BSW/M
Modell | Best.-Nr. | HE |
FL/M 00300 | 86700031 | 3 |
FL/M 00600 | 86700061 | 6 |
Die Montage erfolgt über die Profilschienenbefestigung. Zusätzliche Befestigung mit BFS/M 0600 (86000060) und 1500 (86000150).
1 Flansch
Flansche mit Löchern zur Griffbefestigung, frontseitig naturfarben eloxiert, rückseitig passiviert, für BSW/M
Modell | Best.-Nr. | HE |
FLG/M 00300 | 86700032 | 3 |
FLG/M 00600 | 86700062 | 6 |
Die Montage erfolgt über die Profilschienenbefestigung. Zusätzliche Befestigung mit BFS/M 0600 (86000060) und 1500 (86000150).
1 Flansch

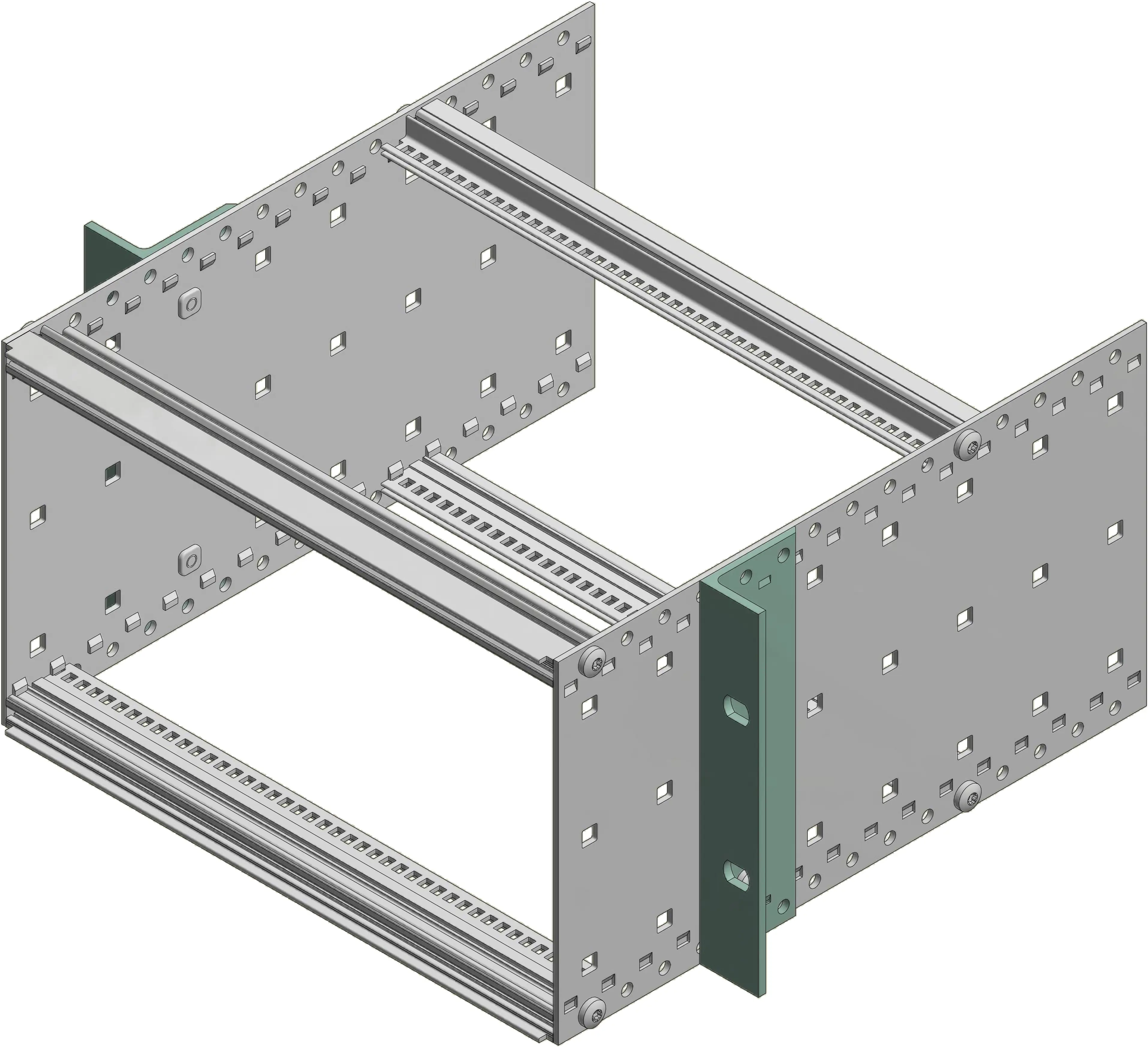

Flansche universal, frontseitig naturfarben eloxiert, rückseitig passiviert, für BSW/M
Modell | Best.-Nr. | HE |
FLU/M 00300 | 86700033 | 3 |
FLU/M 00600 | 86700063 | 6 |
Die Montage erfolgt über die Profilschienenbefestigung oder wahlweise separat in einem 30 mm Raster. Montagematerial BFS/M 0600 (86000060) und 1500 (86000150) im Zubehör.
1 Flansch

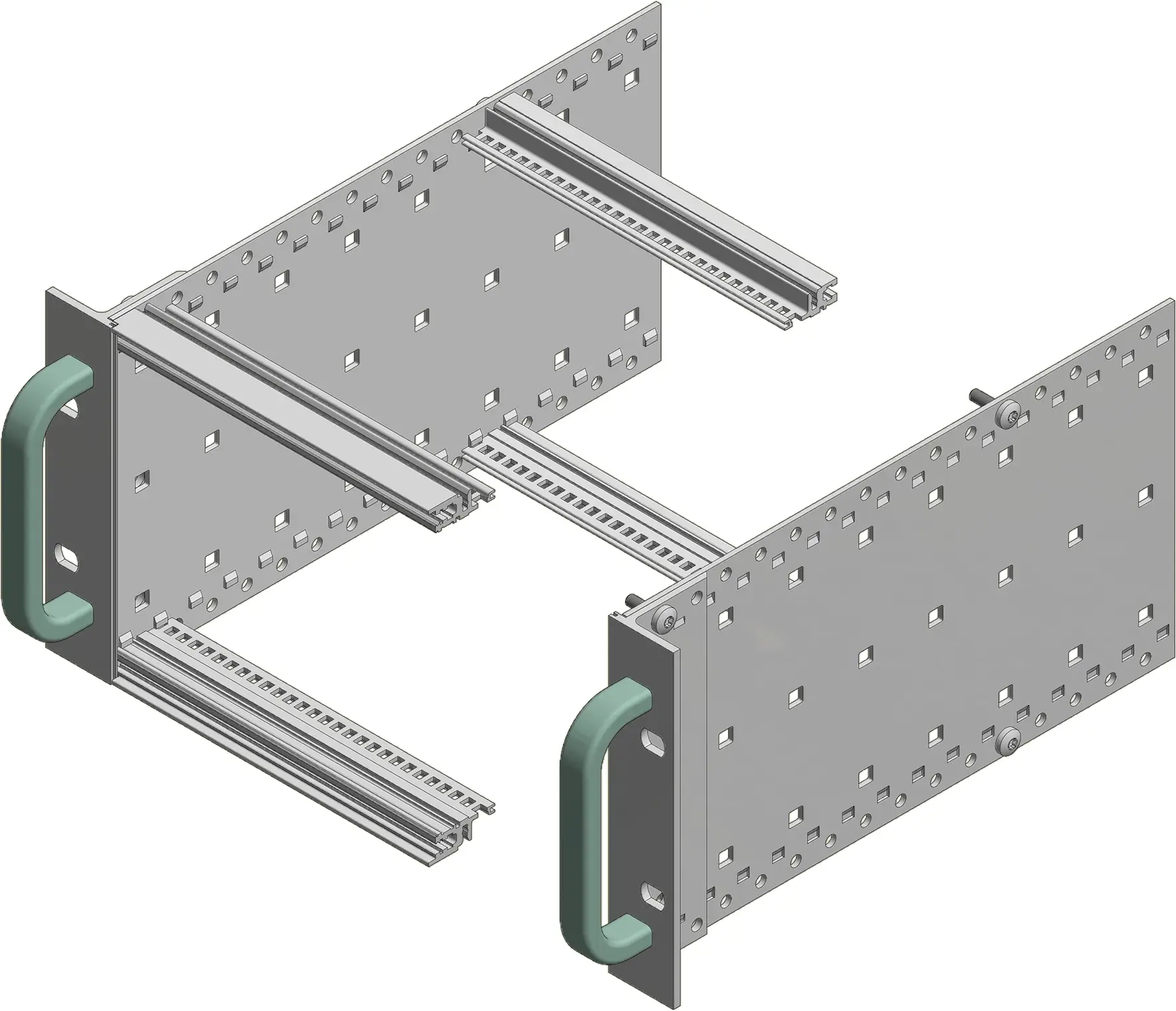

Griffe für Flansche FLG/M, Alu naturfarben eloxiert
Modell | Best.-Nr. | HE |
GR/M 00300 | 86700035 | 3 |
Montagematerial BFS/M 0700 86000070 im Zubehör.
Einsetzbar an den Druckgussecken für IT 15..., IT 20... .
1 Griff
