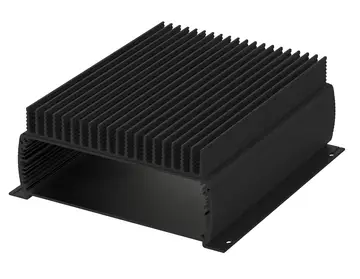

Alubos | ABPH 1600 KWL

ABPH 1600-0200 KWL
Best.-Nr.: 84416200
ABPH 1600 200 KWL 1 B 84416200
ABPH 1600 200 KWL 2 B 84416200
ABPH 1600 200 KWL 1 B 84416200
ABPH 1600 200 KWL 2 B 84416200
ABPH 1600-0200 KWL
Best.-Nr.: 84416200
Warenkorb
Stück
Stück
Warenkorb anzeigenDruckansicht herunterladen
* = Lieferbar auf Anfrage.

Produktzeichnung

Gehäusekonzept

Alubos

Eigenschaften

Abmessungen
169 x 52 x 200 mm
Farbton
Schwarz, ähnlich RAL 9005
Schutzart
IP 65
NEMA
3
Gehäusematerial

Strangpressprofile: Al Mg Si 0,5 pulverbeschichtet; Druckgussdeckel GD Al Si 12 pulverbeschichtet, Dichtung TPE; Details siehe Technische Informationen

Lieferumfang

Gehäuseprofil, 2-teilig inkl. Profildichtung

Hinweis

C entspricht der Profillänge, Sonderlängen auf Anfrage.

Bitte beachten!

Für den Druckausgleich bei Temperaturwechsel und die dadurch auftretende Feuchtigkeit im Gehäuse empfehlen wir Ihnen den Einsatz eines DAE .

Damit Sie auch für Ihren Anwendungsfall die richtige Menge ermitteln können, stellen wir Ihnen hier einen DAE-Rechner bereit.

» Weitere Informationen

Technische Informationen / Downloads

3D-Produktdaten im STEP-Format:
Produktzeichnung im PDF-Format:
Produktzeichnung im DXF-Format:
» Wichtiger Hinweis zu den folgenden Materialdaten
AluProfil Legierung (Profilmaterial)
Beschichtung Brillux 5904 (Pulverbeschichtung)

Passendes Zubehör

Abschlussdeckel

84161000
Für AB 1600

Dichtungen EMV

84201615
Für AB 1600

Dichtungen Feuerrot

84201616
Für AB 1600

Dichtungen Patinagrün

84201613
Für AB 1600

Dichtungen Rapsgelb

84201612
Für AB 1600

Dichtungen UL 94 V0

84201619*
Für AB 1600

Dichtungen Ultramarinblau

84201614
Für AB 1600
