Bopla Gehäuse Systeme GmbH | Borsigstr. 17-25, 32257 Bünde
Tel.: +49 (0)5223 / 969 - 0 | E-Mail: info@bopla.de | Internet: www.bopla.de

Alubos | ABP 1300

ABP 1300-0100
Best.-Nr.: 84130100

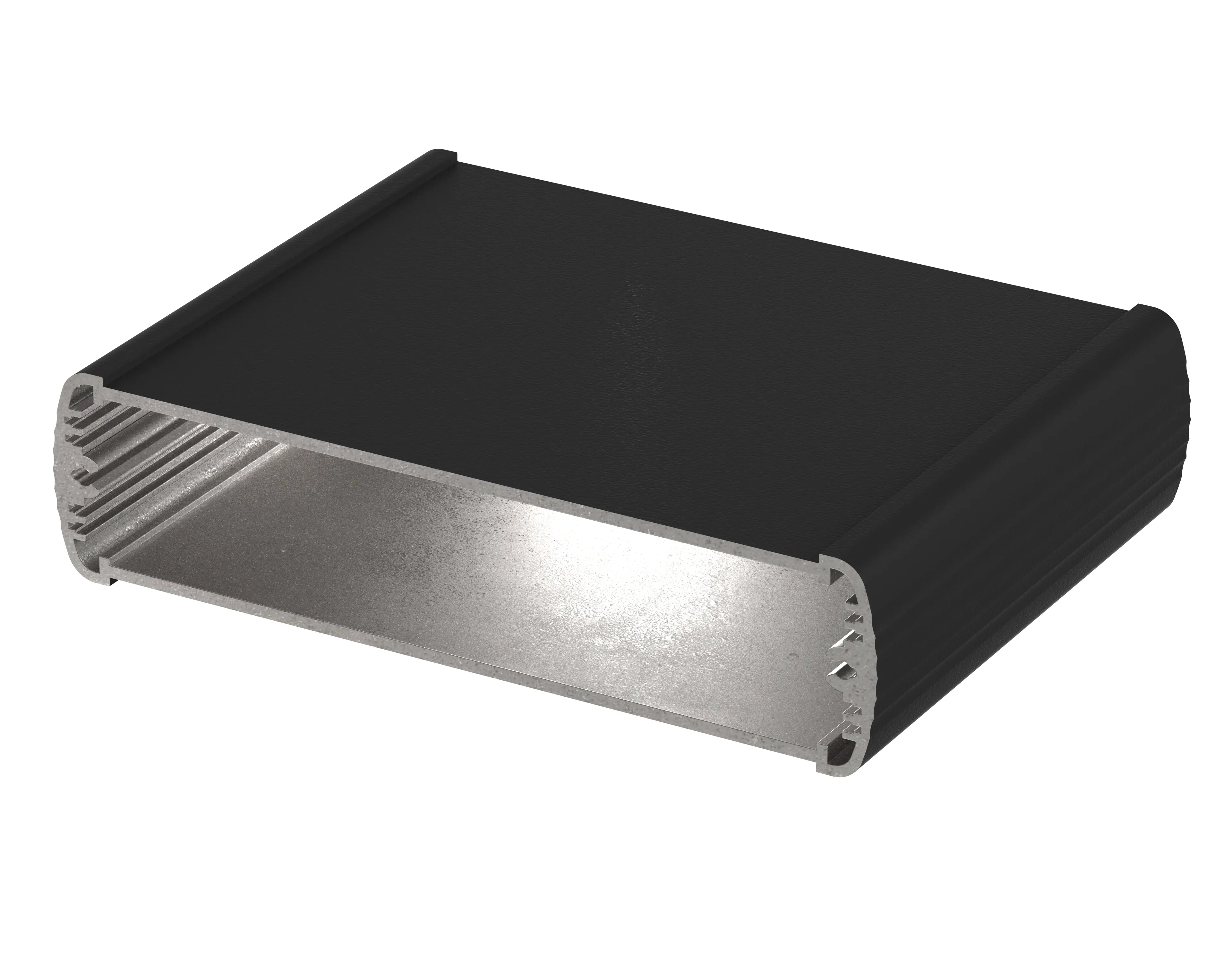

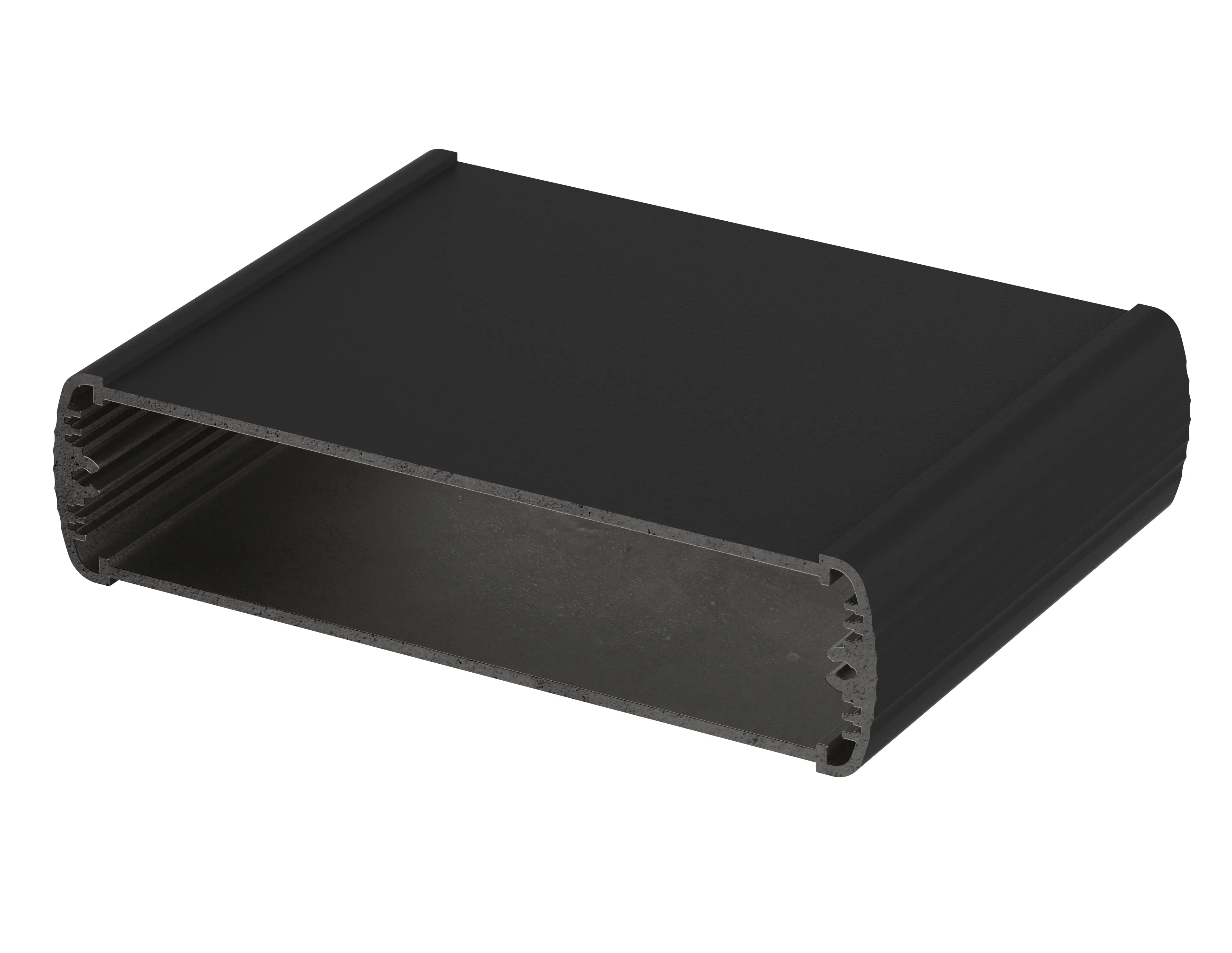

ABP 1300 0100 1 B 84130100
ABP 1300 0100 B 84130100
ABP 1300 0100 1 B 84130100
ABP 1300 0100 B 84130100
ABP 1300-0100
Best.-Nr.: 84130100
Warenkorb
Stück
Stück
Warenkorb anzeigenDruckansicht herunterladen
* = Lieferbar auf Anfrage.

Produktzeichnung

Gehäusekonzept

Alubos

Eigenschaften

Abmessungen
138 x 34 x 100 mm
Farbton
Schwarz, ähnlich RAL 9005
Schutzart
IP 65
NEMA
3
Gehäusematerial

Strangpressprofile: Al Mg Si 0,5 pulverbeschichtet; Druckgussdeckel GD Al Si 12 pulverbeschichtet, Dichtung TPE; Details siehe Technische Informationen

Lieferumfang

Gehäuseprofil

Hinweis

C entspricht der Profillänge, Sonderlängen auf Anfrage.

Bitte beachten!

Für den Druckausgleich bei Temperaturwechsel und die dadurch auftretende Feuchtigkeit im Gehäuse empfehlen wir Ihnen den Einsatz eines DAE .

Damit Sie auch für Ihren Anwendungsfall die richtige Menge ermitteln können, stellen wir Ihnen hier einen DAE-Rechner bereit.

» Weitere Informationen

Technische Informationen / Downloads

3D-Produktdaten im STEP-Format:
Produktzeichnung im PDF-Format:
Produktzeichnung im DXF-Format:
» Wichtiger Hinweis zu den folgenden Materialdaten
AluProfil Legierung (Profilmaterial)
Beschichtung Brillux 5904 (Pulverbeschichtung)

Passendes Zubehör

Abschlussdeckel

84131000
Für AB 1300

Dichtungen EMV

84201315
Für AB 1300

Dichtungen Feuerrot

84201311
Für AB 1300

Dichtungen Patinagrün

84201313
Für AB 1300

Dichtungen Rapsgelb

84201312
Für AB 1300

Dichtungen UL 94 V0

84201319*
Für AB 1300

Dichtungen Ultramarinblau

84201314
Für AB 1300

Gummifüße selbstklebend, schwarz

84006700
Polyurethan, 65-75 Shore
Schwarz

Montagedeckel mit scharnierter Alu-Klappe

84134000
Für AB 1300

Wandlaschen, Stahlblech

84005000
Für AB 600/800/1000/1300
