Bopla Gehäuse Systeme GmbH | Borsigstr. 17-25, 32257 Bünde
Tel.: +49 (0)5223 / 969 - 0 | E-Mail: info@bopla.de | Internet: www.bopla.de

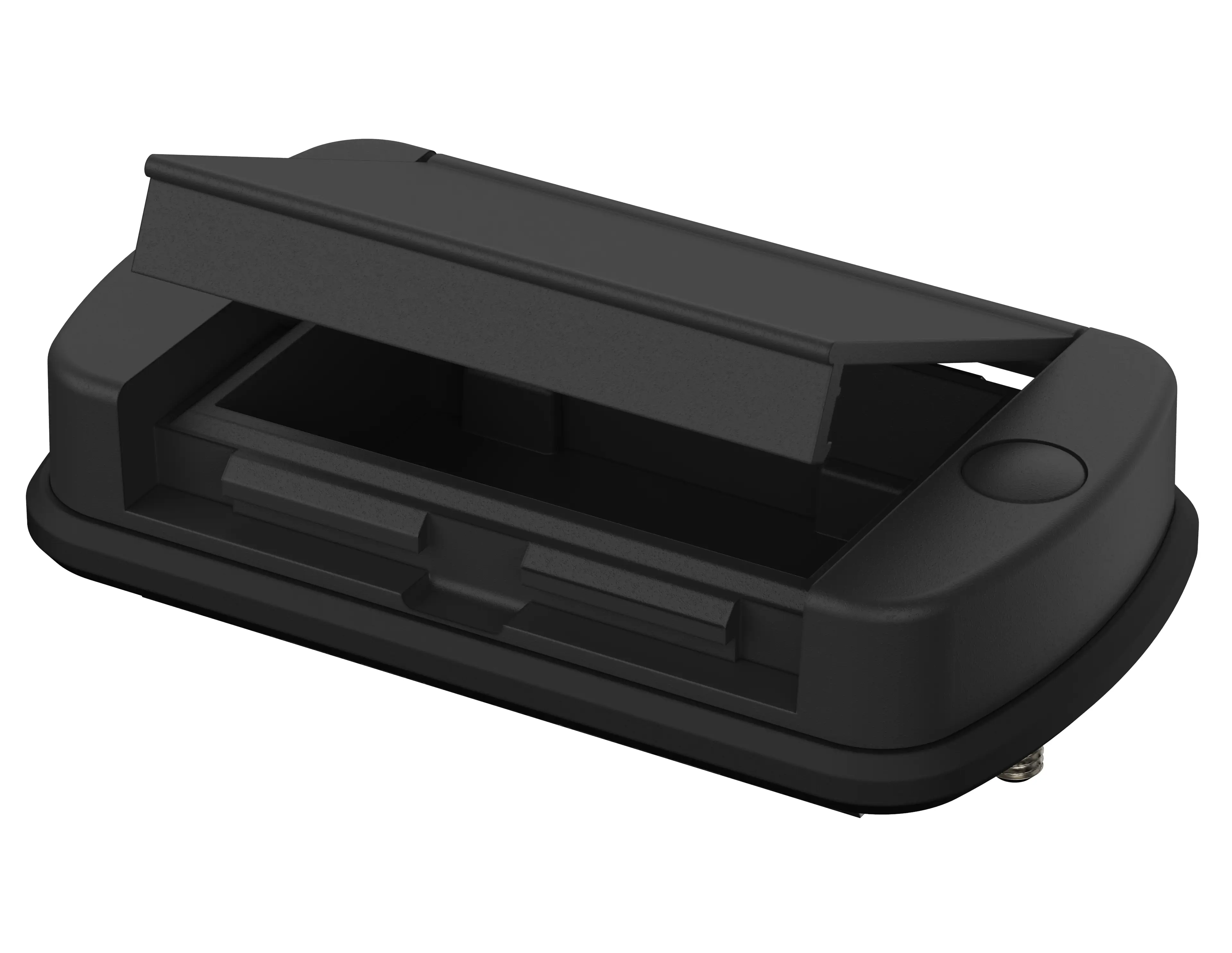

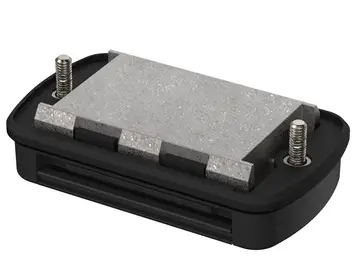

Alubos | Montagedeckel mit scharnierter Alu-Klappe

ABM 600 SAL
Best.-Nr.: 84064000

Für AB 600

ABM 600 SAL 1 B 84064000
ABM 600 SAL 1a B 84064000
ABM 600 SAL 2 B 84064000
ABM 600 SAL 3 B 84064000
ABM 600 SAL 1 B 84064000
ABM 600 SAL 1a B 84064000
ABM 600 SAL 2 B 84064000
ABM 600 SAL 3 B 84064000
ABM 600 SAL
Best.-Nr.: 84064000

Für AB 600

Warenkorb
Stück
Stück
Warenkorb anzeigenDruckansicht herunterladen
* = Lieferbar auf Anfrage.

Produktzeichnung

Gehäusekonzept

Alubos

Eigenschaften

Farbton
Schwarz, ähnlich RAL 9005
Schutzart
IP 65
Gehäusematerial

Strangpressprofile: Al Mg Si 0,5 pulverbeschichtet; Druckgussdeckel GD Al Si 12 pulverbeschichtet, Dichtung TPE; Details siehe Technische Informationen

Lieferumfang

Montagedeckel, Alu-Scharnierklappe, schwarze Dichtung, Schrauben, schwarze Schraubenabdeckungen

Bitte beachten!

Für den Druckausgleich bei Temperaturwechsel und die dadurch auftretende Feuchtigkeit im Gehäuse empfehlen wir Ihnen den Einsatz eines DAE .

Damit Sie auch für Ihren Anwendungsfall die richtige Menge ermitteln können, stellen wir Ihnen hier einen DAE-Rechner bereit.

» Weitere Informationen

Technische Informationen / Downloads

3D-Produktdaten im STEP-Format:
Produktzeichnung im PDF-Format:
Produktzeichnung im DXF-Format:

Passendes Zubehör

Dichtungen Feuerrot

84200611
Für AB 600

Dichtungen Patinagrün

84200613
Für AB 600

Dichtungen Rapsgelb

84200612
Für AB 600

Dichtungen UL 94 V0

84200619*
Für AB 600

Dichtungen Ultramarinblau

84200614
Für AB 600
