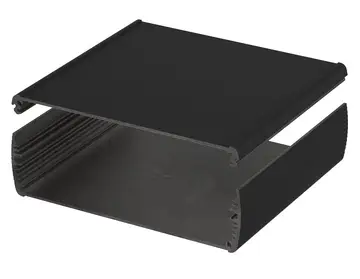

Alubos | ABPH 1600

ABPH 1600-0150
Bestelnummer: 84166150
ABPH 1600 0150 1 B 84166150
ABPH 1600 0150 1a B 84166150
ABPH 1600 0150 2 B 84166150
ABPH 1600 0150 1 B 84166150
ABPH 1600 0150 1a B 84166150
ABPH 1600 0150 2 B 84166150
ABPH 1600-0150
Bestelnummer: 84166150
Aan winkelwagen toevoegen
Stuks
Stuks
Winkelwagen aantonenPrintaanzicht downloaden
* = op aanvraag leverbaar.

Producttekening

Behuizingsconcept

Alubos

Eigenschappen

Afmetingen
169 x 52 x 150 mm
Kleurnuance
Zwart, zoals RAL 9005
Beschermingsgraad
IP 65
NEMA
3
Materiaal van de behuizing

Extrusieprofielen: Al Mg Si 0,5 met poedercoating; drukgietdeksel GD-Al Si 12, met poedercoating, dichting TPE; details zie Technische informatie

Bedrijfstemperatuur: -25/110° C

Omvang van de levering

behuizingsprofiel, 2-delig incl. profieldichting

Opmerking

C stemt overeen met de profiellengte, speciale lengtes op aanvraag.



De afmetingen zijn waarden bij benadering. De exacte waarden vindt u op de betreffende producttekening.

Belangrijk!

Om de druk bij temperatuurschommelingen te compenseren en daardoor vocht in de behuizing te voorkomen, adviseren wij de toepassing van een DAE element.

Opdat u ook voor uw toepassing de juiste hoeveelheid kunt berekenen, stellen wij u hier een DAE-berekeningsformule ter beschikking.

» Nadere informatie

Technische documentatie / Downloads

3D-productgegevens in STEP-formaat:
Producttekening in PDF-formaat:
Producttekening in DXF-formaat:
AluProfil Legierung (Profile material)
Beschichtung Brillux 5904 (Poedercoating)

Passende accessoires

Afsluitdeksels

84161000
Voor AB 1600

Dichtingen EMC

84201615
Voor AB 1600

Dichtingen UL 94 V0

84201619*
Voor AB 1600

Dichtingen koolzaadgeel

84201612
Voor AB 1600

Dichtingen patinagroen

84201613
Voor AB 1600

Dichtingen ultramarijnblauw

84201614
Voor AB 1600

Dichtingen vuurrood

84201616
Voor AB 1600

Handgreep / opstebeugel zwenkbaar

84162000
Voor AB 1600/1680

Rubbervoeten zelfklevend, zwart

84006700
Polyurethaan, 65-75 Shore
Zwart

Wandbevestigingen, staalplaat

84008000
Voor AB 1600/1680/2070
