Interzoll | Subrack per backplane (.Pi)

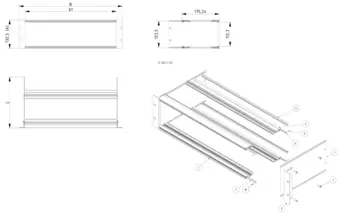

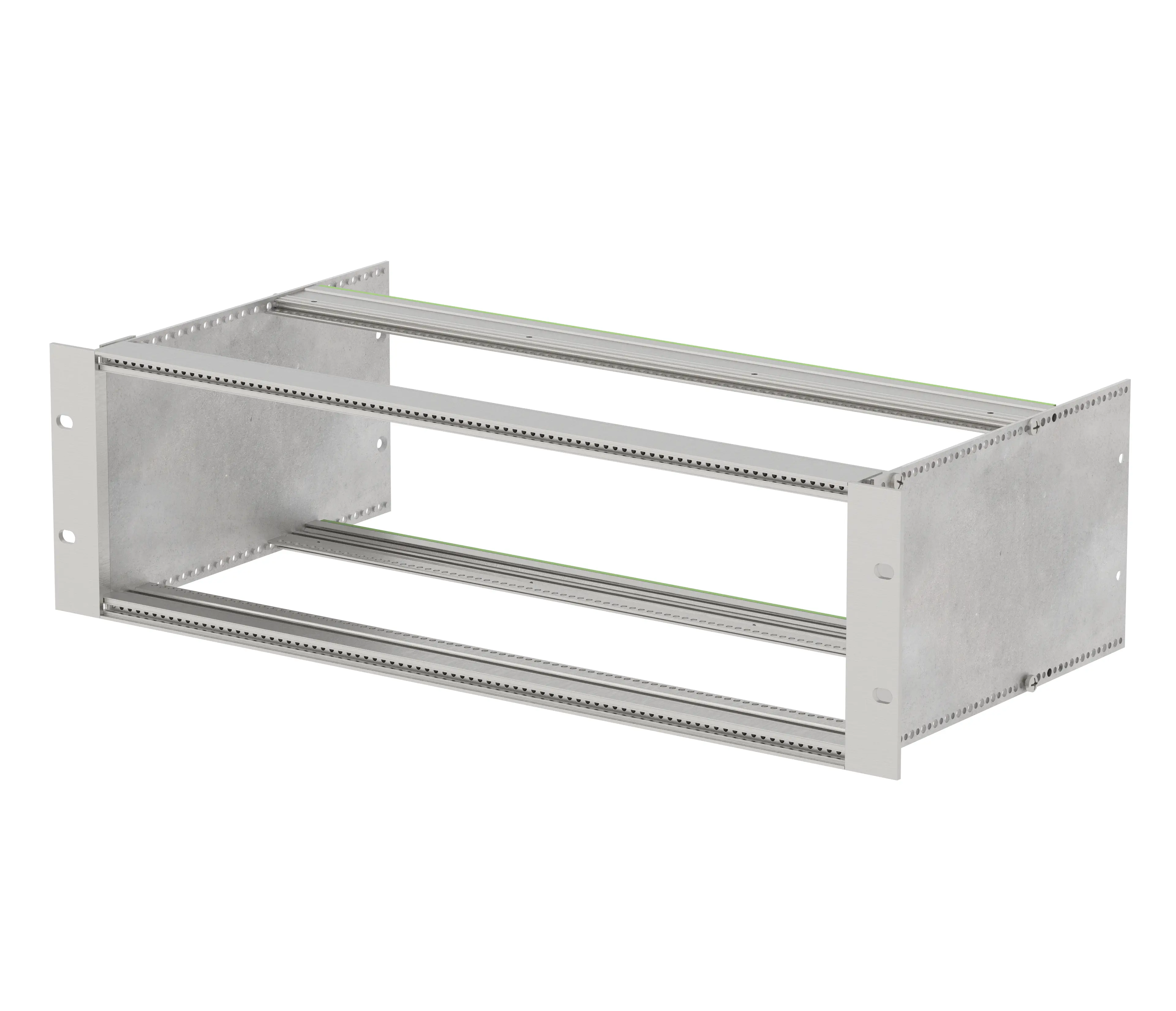

Subrack 3 U per backplane (.Pi)
Modello | Cod. d'ord. | A | B | C | b1 | Prova IP | NEMA | U | HP | Profondità scheda |
BGT 18340.Pi | 53183425 | 132.5 | 269.24 | 178.24 | 213.36 | 20 | 1 | 3 | 42 | 160 |
BGT 24340.Pi | 53243425 | 132.5 | 269.24 | 238.24 | 213.36 | 20 | 1 | 3 | 42 | 160, 220 |
BGT 30340.Pi | 53303425 | 132.5 | 269.24 | 298.24 | 213.36 | 20 | 1 | 3 | 42 | 160, 220, 280 |
BGT 18360.Pi | 53183625 | 132.5 | 375.92 | 178.24 | 320.04 | 20 | 1 | 3 | 63 | 160 |
BGT 24360.Pi | 53243625 | 132.5 | 375.92 | 238.24 | 320.04 | 20 | 1 | 3 | 63 | 160, 220 |
BGT 30360.Pi | 53303625 | 132.5 | 375.92 | 298.24 | 320.04 | 20 | 1 | 3 | 63 | 160, 220, 280 |
BGT 18380.Pi | 53183825 | 132.5 | 482.6 | 178.24 | 426.72 | 20 | 1 | 3 | 84 | 160 |
BGT 24380.Pi | 53243825 | 132.5 | 482.6 | 238.24 | 426.72 | 20 | 1 | 3 | 84 | 160, 220 |
BGT 30380.Pi | 53303825 | 132.5 | 482.6 | 298.24 | 426.72 | 20 | 1 | 3 | 84 | 160, 220, 280 |
subrack con maniglia su richiesta.
1) 2 pannelli laterali (BSW ..300)
2) 2 flange (FL 00300)
3) 2 profilati frontali (PF 000..)
4) 2 profilati per bus (PB 000..)
5) 2 strisce filettate per il fissaggio di piastre frontali (GS 000.. I)
6) 2 strisce filettate per il fissaggio di schede BUS (GS 000.. II)
7) 8 viti M4 x 12 (BFS 0100)
8) 2 grani filettati M2,5x5 (GSE-5)
9) 2 grani filettati M2,5x8 (GSE-8)
10) 4 strisce isolanti (IS 00042)

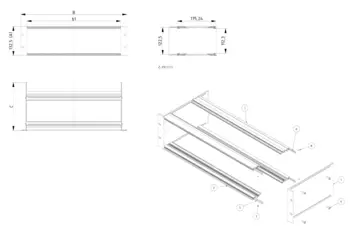

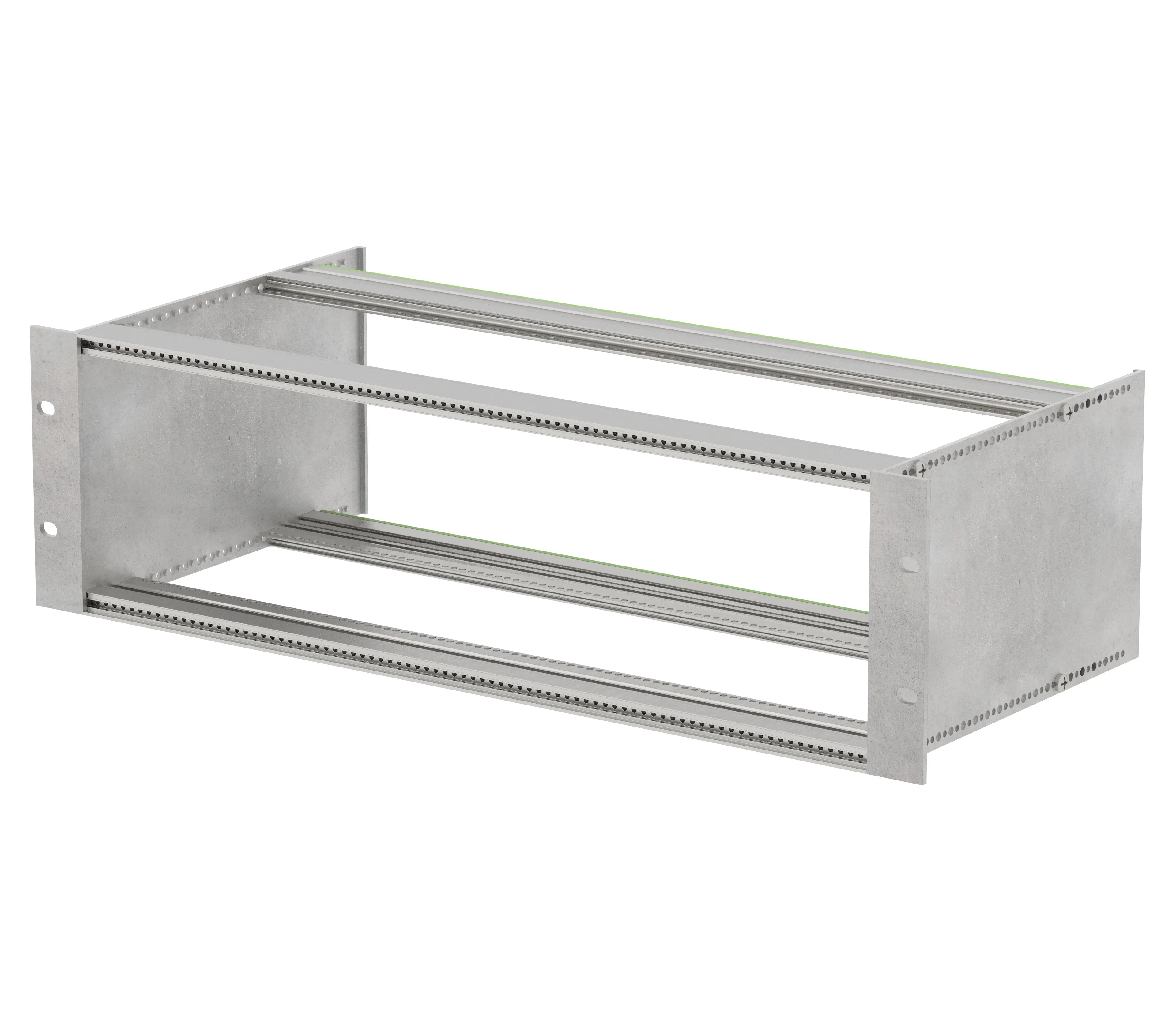

Subrack con pannello laterale profilato 3 U per backplane (.Pi)
Modello | Cod. d'ord. | A | B | C | b1 | Prova IP | NEMA | U | HP | Profondità scheda |
BGT 22340.Pi | 53223425 | 132.5 | 269.24 | 218.24 | 213.36 | 20 | 1 | 3 | 42 | 160 |
BGT 22360.Pi | 53223625 | 132.5 | 375.92 | 218.24 | 320.04 | 20 | 1 | 3 | 63 | 160 |
BGT 22380.Pi | 53223825 | 132.5 | 482.6 | 218.24 | 426.72 | 20 | 1 | 3 | 84 | 160 |
Montaggio backplane senza striscia isolante. subrack con maniglia su richiesta.
1) 2 Pannelli laterali con flangia integrata (BSW 22300)
2) 2 profilati frontali (PF 000..)
3) 2 profilati per bus (PBK 000..)
4) 8 viti M4 x 12 (BFS 0100)
5) 2 strisce filettate per il fissaggio di piastre frontali (GS 000.. I)
6) 2 strisce filettate per il fissaggio di schede BUS (GS 000.. II)
7) 2 grani filettati M2,5x5 (GSE-5)
8) 2 grani filettati M2,5x8 (GSE-8)

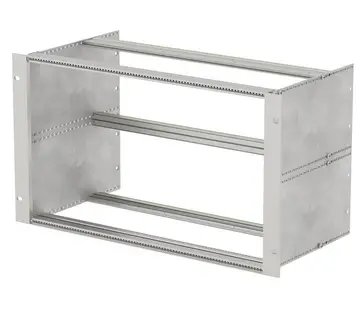

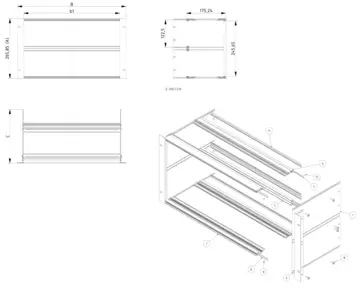

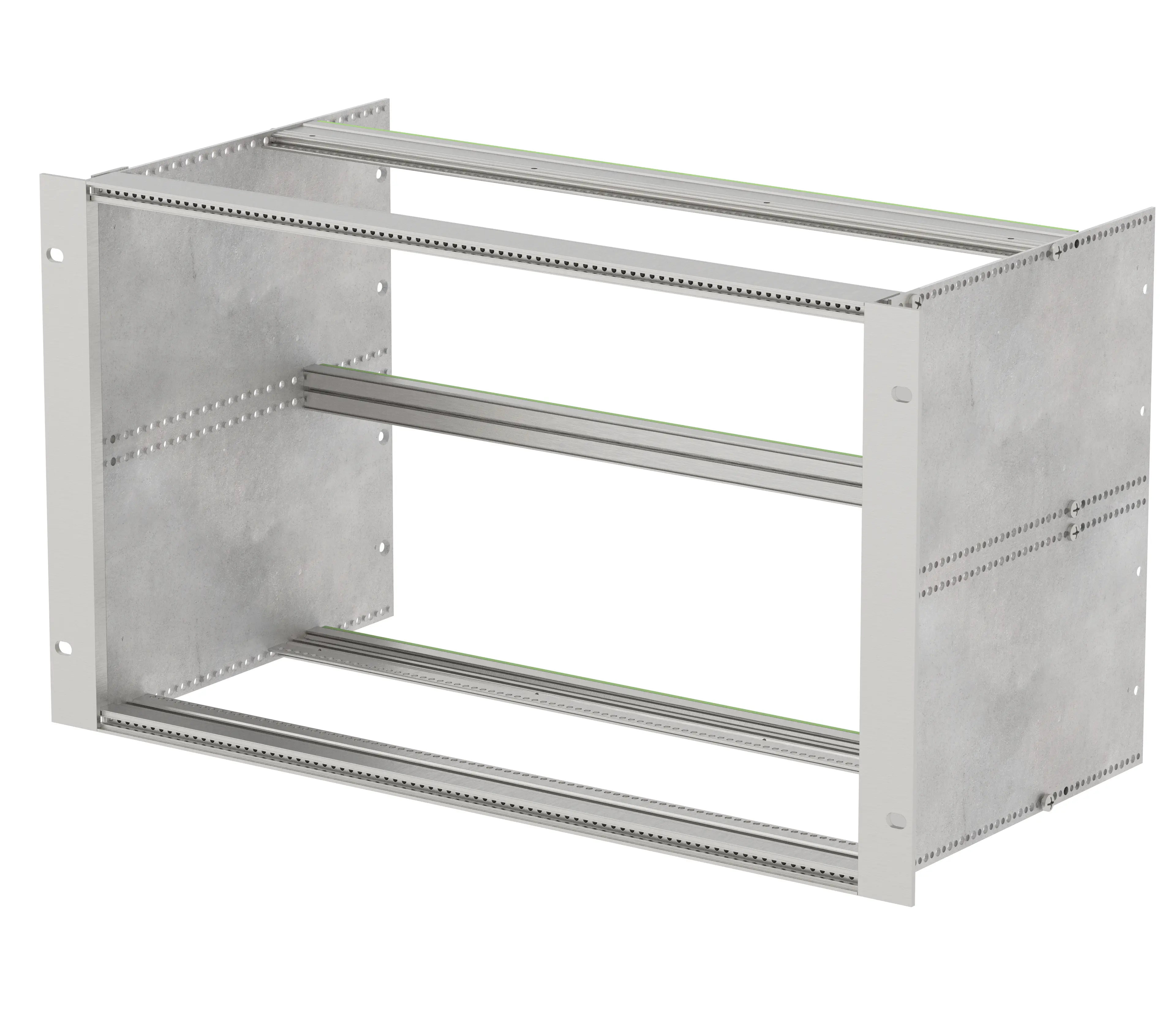

Subrack 6 U per backplane (.Pi)
Modello | Cod. d'ord. | A | B | C | b1 | Prova IP | NEMA | U | HP | Profondità scheda |
BGT 18640.Pi | 53186425 | 265.85 | 269.24 | 178.24 | 213.36 | 20 | 1 | 6 | 42 | 160 |
BGT 24640.Pi | 53246425 | 265.85 | 269.24 | 238.24 | 213.36 | 20 | 1 | 6 | 42 | 160, 220 |
BGT 30640.Pi | 53306425 | 265.85 | 269.24 | 298.24 | 213.36 | 20 | 1 | 6 | 42 | 160, 220, 280 |
BGT 18660.Pi | 53186625 | 265.85 | 375.92 | 178.24 | 320.04 | 20 | 1 | 6 | 63 | 160 |
BGT 24660.Pi | 53246625 | 265.85 | 375.92 | 238.24 | 320.04 | 20 | 1 | 6 | 63 | 160, 220 |
BGT 30660.Pi | 53306625 | 265.85 | 375.92 | 298.24 | 320.04 | 20 | 1 | 6 | 63 | 160, 220, 280 |
BGT 18680.Pi | 53186825 | 265.85 | 482.6 | 178.24 | 426.72 | 20 | 1 | 6 | 84 | 160 |
BGT 24680.Pi | 53246825 | 265.85 | 482.6 | 238.24 | 426.72 | 20 | 1 | 6 | 84 | 160, 220 |
BGT 30680.Pi | 53306825 | 265.85 | 482.6 | 298.24 | 426.72 | 20 | 1 | 6 | 84 | 160, 220, 280 |
subrack con maniglia su richiesta.
1) 2 pannelli laterali (BSW ..600)
2) 2 flange (FL 00600)
3) 2 profilati frontali (PF 000..)
4) 2 profilati per bus (PB 000..)
5) 1 profilato doppio per bus (PBD 006..)
6) 2 strisce filettate per il fissaggio di piastre frontali (GS 000.. I)
7) 4 strisce filettate per il fissaggio di schede BUS (GS 000.. II)
8) 12 viti M4 x 12 (BFS 0100)
9) 2 grani filettati M2,5x5 (GSE-5)
10) 4 grani filettati M2,5x8 (GSE-8)
11) 8 strisce isolanti (IS 00042)

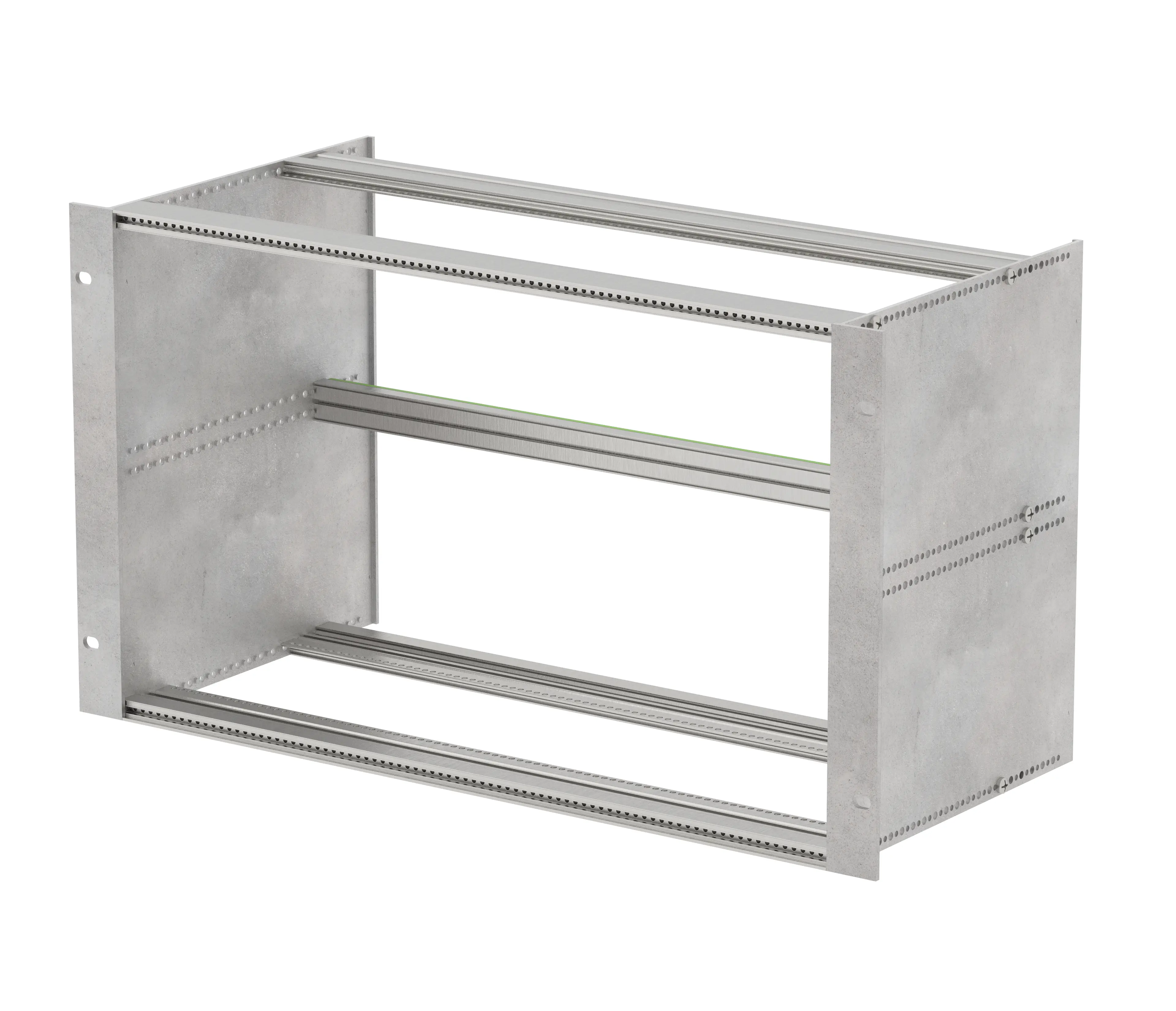

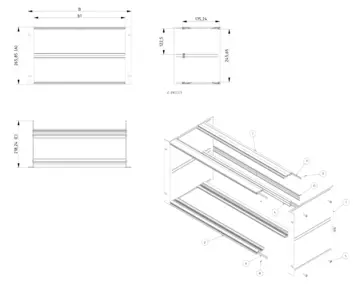

Subrack con pannello laterale profilato 6 U per backplane (.Pi)
Modello | Cod. d'ord. | A | B | C | b1 | Prova IP | NEMA | U | HP | Profondità scheda |
BGT 22640.Pi | 53226425 | 265.85 | 269.24 | 218.24 | 213.36 | 20 | 1 | 6 | 42 | 160 |
BGT 22660.Pi | 53226625 | 265.85 | 375.92 | 218.24 | 320.04 | 20 | 1 | 6 | 63 | 160 |
BGT 22680.Pi | 53226825 | 265.85 | 482.6 | 218.24 | 426.72 | 20 | 1 | 6 | 84 | 160 |
Montaggio backplane senza striscia isolante. subrack con maniglia su richiesta.
1) 2 Pannelli laterali con flangia integrata (BSW 22600)
2) 2 profilati frontali (PF 000..)
3) 2 profilati per bus (PBK 000..)
4) 1 profilato doppio per bus (PBD 006..)
5) 12 viti M4 x 12 (BFS 0100)
6) 2 strisce filettate per il fissaggio di piastre frontali (GS 000.. I)
7) 4 strisce filettate per il fissaggio di schede BUS (GS 000.. II)
8) 2 grani filettati M2,5x5 (GSE-5)
9) 4 grani filettati M2,5x8 (GSE-8)
