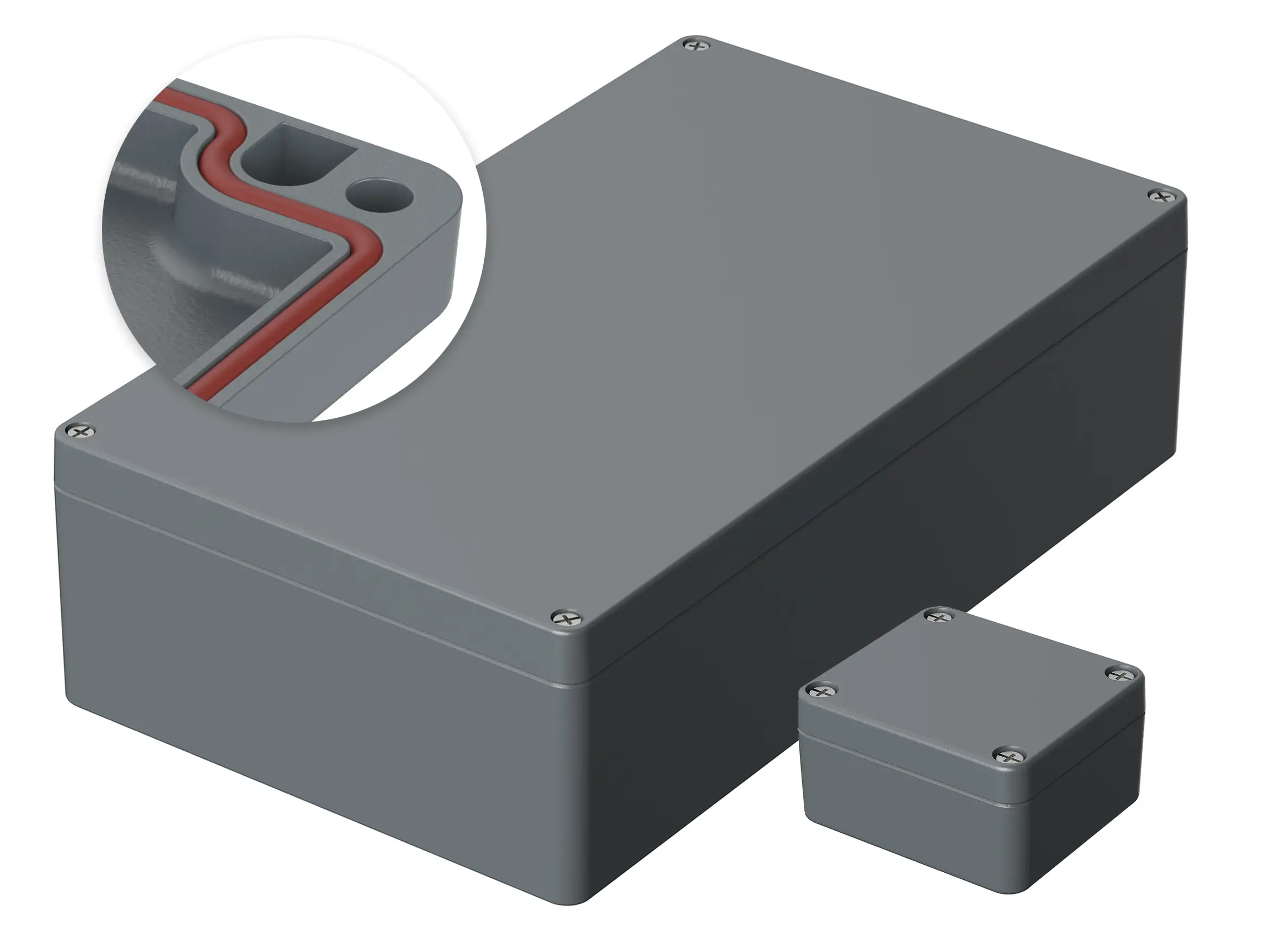

Custodia, in alluminio, con guarnizione in silicone per coperchio

Custodie con guarnizione in silicone per coperchio Custodia, in alluminio, con guarnizione in silicone per coperchio
2403216
Modello Cod. d'ord. A B C a1 a2 b1 b2 b3 c1 c2 Prova IP NEMA IK
A 100 SIL 01100010 50 45 30 44 30 39 25 - 6 25 66 3 08
A 101 SIL 01101010 58 64 34 50.5 34 56.8 32 - 9 28.5 66 3 09
A 102 SIL 01102010 98 64 34 90.5 74 56.8 32 - 9 28.5 66 3 09
A 103 SIL 01103010 150 64 34 142.5 126 56.8 32 - 9 28.5 66 3 09
A 104 SIL 01104010 115 64 34.5 107.5 90.6 56.5 31.6 - 9 29 66 3 09
A 105 SIL 01105010 75 80 57 65.5 50.4 70.5 47.4 - 15 51 66 3 09
A 106 SIL 01106010 185.5 64 34.5 178 161.1 56.5 31.6 - 9 29 66 3 09
A 110 SIL 01110011 125 80 57 115.5 100.4 70.5 47.4 - 15 51 66 3 09
A 114 SIL 01114010 200 100 81 190 172 90 52 - 20 74 66 3 09
A 115 SIL 01115010 175 80 57 165.5 150.4 70.5 47.4 - 15 51 66 3 09
A 116 SIL 01116010 100 100 81 90 72 90 52 - 20 74 66 3 09
A 117 SIL 01117010 250 80 52 240.5 225.4 70.5 47.4 - 12 45 66 3 09
A 118 SIL 01118010 160 100 81 150 132 90 52 - 20 74 66 3 09
A 119 SIL 01119010 122 120 81 111 88 109 64 - 20 72 66 3 09
A 120 SIL 01120010 122 120 91 111 89.1 109 64 - 30 82 66 3 09
A 121 SIL 01121010 140 140 91 129 101 129 74 - 30 82 66 3 09
A 122 SIL 01122010 220 120 81 209 186 109 64 - 20 72 66 3 09
A 123 SIL 01123011 220 120 91 209 186 109 64 - 30 82 66 3 09
A 124 SIL 01124010 360 120 81 349 326 109 64 - 20 72 66 3 09
A 125 SIL 01125011 160 160 91 148.6 117.6 149 88 - 20 82 66 3 09
Modello Cod. d'ord. A B C a1 a2 b1 b2 b3 c1 c2 Prova IP NEMA IK
A 126 SIL 01126010 200 140 91 189 161 129 74 - 30 82 66 3 09
A 127 SIL 01127010 180 180 101 169 138 169 108 - 30 92 66 3 09
A 130 SIL 01130011 260 160 91 248.6 217.6 149 88 - 20 91 66 3 09
A 131 SIL 01131010 280 180 101 269 238 169 108 - 30 92 66 3 09
A 135 SIL 01135011 360 160 91 348.6 317.6 149 88 - 20 82 66 3 09
A 138 SIL 01138010 560 160 91 548.5 517.5 149 88 113 20 82 66 3 09
A 140 SIL 01140010 200 230 111 189 157 219 157 - 20 102 66 3 09
A 145 SIL 01145010 230 100 111 218 158 88 58 - 20 101 66 3 09
A 150 SIL 01150010 200 230 180 190 158 220 158 - 20 170 66 3 09
A 155 SIL 01155010 280 230 111 268 237 218 157 - 20 102 66 3 09
A 160 SIL 01160010 330 230 111 318 286.5 217.5 156.5 - 20 102 66 3 09
A 165 SIL 01165010 330 230 181 316.5 285.5 216.5 155.5 - 20 170 66 3 09
A 168 SIL 01168010 400 230 111 387 357 217 157 - 20 102 66 3 09
A 169 SIL 01169010 600 230 111 586 558 216 158 188 20 100 66 3 09
A 170 SIL 01170010 400 230 225 384.5 354.5 214.5 155 - 20 214.5 66 3 09
A 175 SIL 01175010 400 310 111 392 359.5 301 239 - 20 101 66 3 09
A 180 SIL 01180010 400 310 141 386.5 358 296.5 238.5 - 20 129.5 66 3 09
A 185 SIL 01185010 400 310 181 390 358.5 299 238 - 20 169.5 66 3 09
A 190 SIL 01190010 400 310 227 388.5 360.5 297.5 240 - 20 216 66 3 09
A 196 SIL 01196010 600 310 111 586 558 296 238 268 20 99.5 66 3 09
A 197 SIL 01197010 600 310 181 584 556 294 236 266 20 169.5 66 3 09
A 198 SIL 01198010 600 600 202.5 583 547 583 547 547 40 189 66 3 09
Avvertenza:

Sulla custodia A 198, a causa dei fori per il fissaggio a parete presenti all'interno dello spazio di tenuta, è necessario, per poter raggiungere il grado di protezione IP 66, ermetizzare correttamente il sistema di fissaggio a parete.

Fornitura:
guscio superiore e inferiore, viti per coperchi (V2A), 4 viti per montaggio/messa a terra
