Botego | Enclosure with air vents in the lid and base

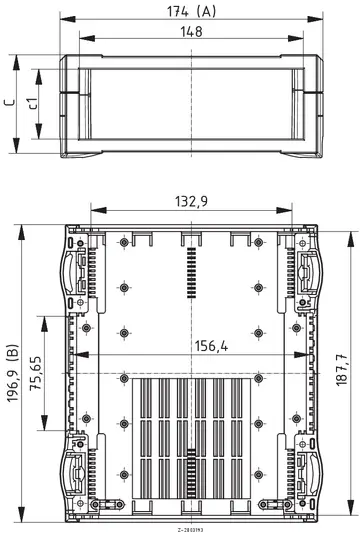

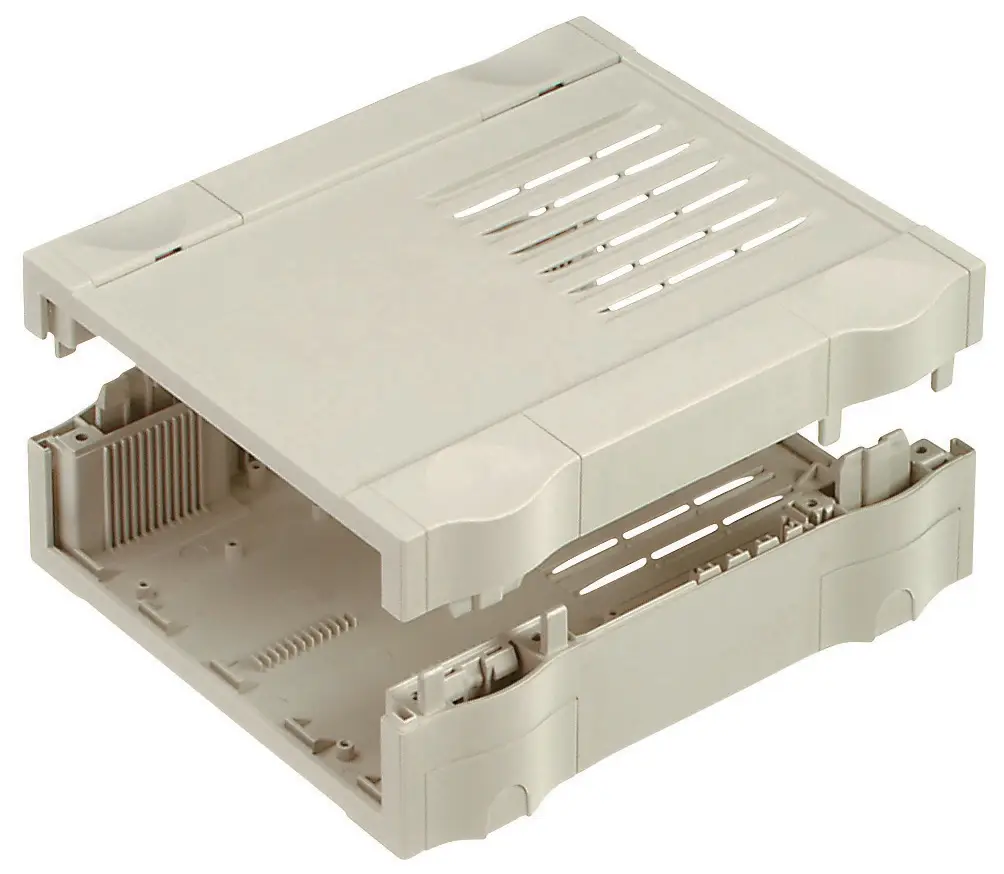

BO 320.. L
Model | Order no. | A | B | C | c1 | IP | NEMA | HE | TE |
BO 32006 L | 68320061 | 174 | 196.9 | 49.96 | 31.28 | 30 | 1 | 3 | 6 |
BO 32009 L | 68320091 | 174 | 196.9 | 65.2 | 46.52 | 30 | 1 | 3 | 9 |
BO 32012 L | 68320121 | 174 | 196.9 | 80.44 | 61.76 | 30 | 1 | 3 | 12 |
Caps are not included in the scope of delivery.
2 half-shells

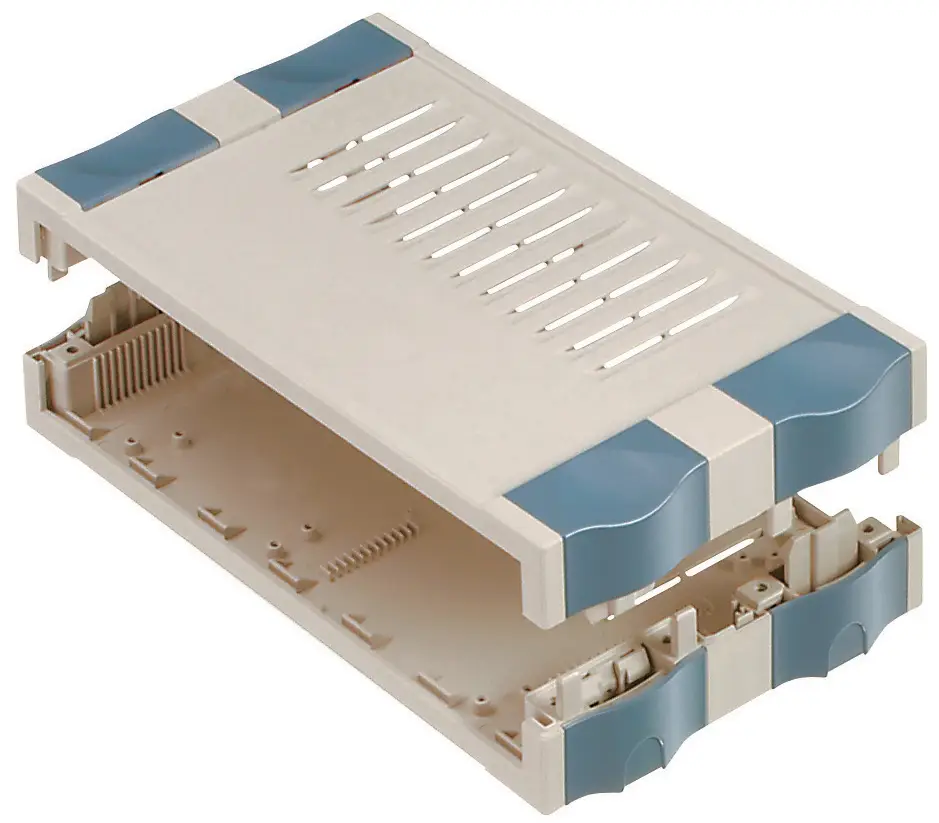

BO 514.. L
Model | Order no. | A | B | C | c1 | IP | NEMA | HE | TE |
BO 51406 L | 68514061 | 240.68 | 136.9 | 49.96 | 31.28 | 30 | 1 | 4.5 | 6 |
BO 51409 L | 68514091* | 240.68 | 136.9 | 65.2 | 46.52 | 30 | 1 | 4.5 | 9 |
BO 51412 L | 68514121* | 240.68 | 136.9 | 80.44 | 61.76 | 30 | 1 | 4.5 | 12 |
Caps are not included in the scope of delivery.
2 half-shells

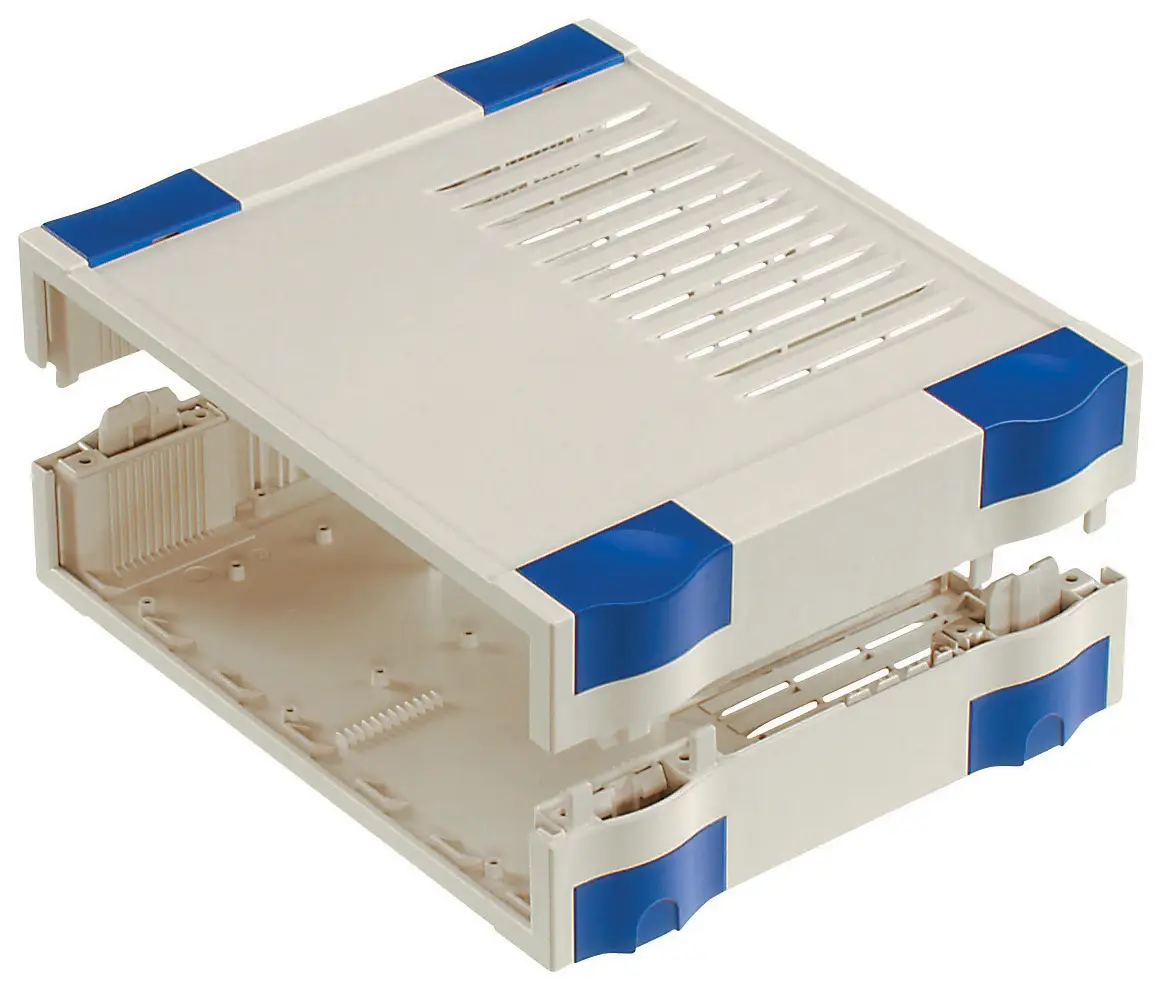

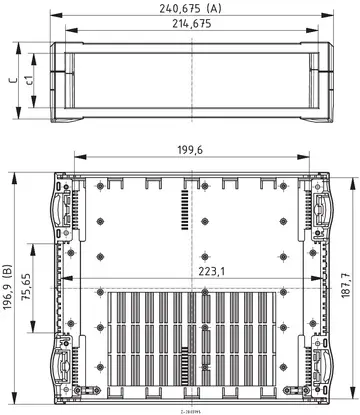

BO 520.. L
Model | Order no. | A | B | C | c1 | IP | NEMA | HE | TE |
BO 52006 L | 68520061 | 240.68 | 196.9 | 49.96 | 31.28 | 30 | 1 | 4.5 | 6 |
BO 52009 L | 68520091 | 240.68 | 196.9 | 65.2 | 46.52 | 30 | 1 | 4.5 | 9 |
BO 52012 L | 68520121 | 240.68 | 196.9 | 80.44 | 61.76 | 30 | 1 | 4.5 | 12 |
Caps are not included in the scope of delivery.
2 half-shells

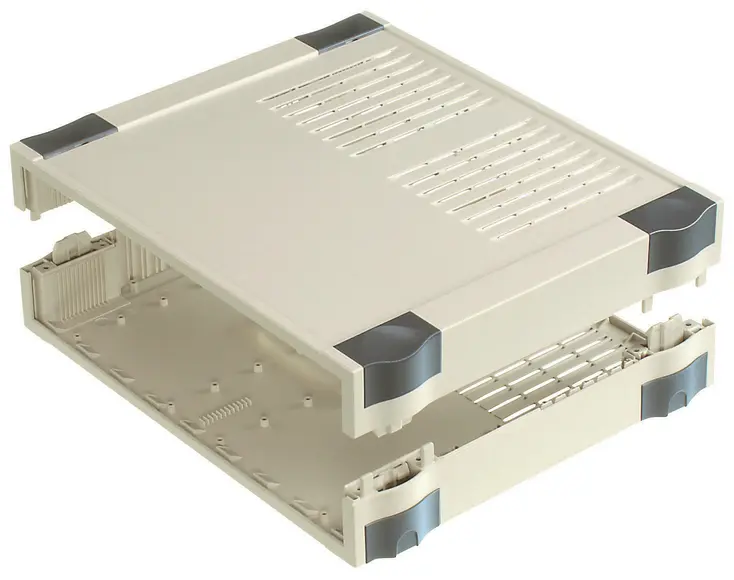

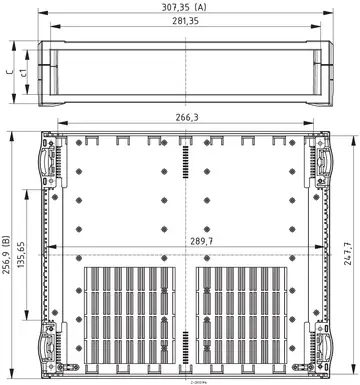

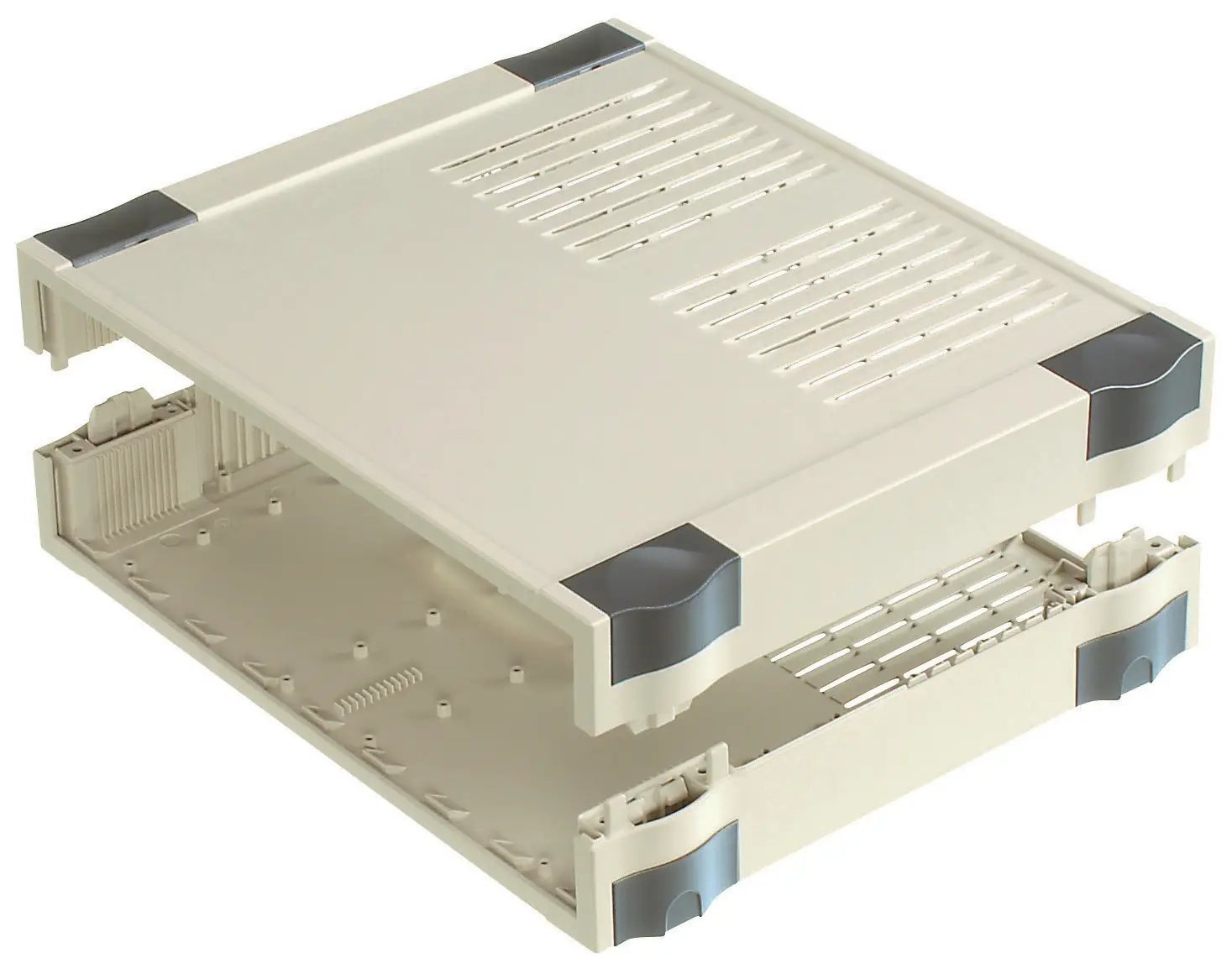

BO 626.. L
Model | Order no. | A | B | C | c1 | IP | NEMA | HE | TE |
BO 62606 L | 68626061 | 307.35 | 256.9 | 49.96 | 31.28 | 30 | 1 | 6 | 6 |
BO 62609 L | 68626091 | 307.35 | 256.9 | 65.2 | 46.52 | 30 | 1 | 6 | 9 |
BO 62612 L | 68626121 | 307.35 | 256.9 | 80.44 | 61.76 | 30 | 1 | 6 | 12 |
Caps are not included in the scope of delivery.
2 half-shells
